Step1: Product

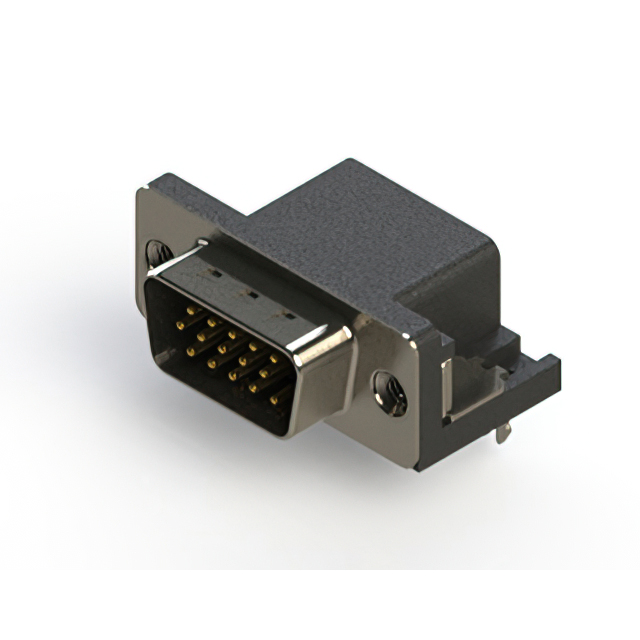

EDAC Inc. 633-015-363-035
Image shown is a representation only
Manufacturer
Manufacturer No
633-015-363-035
Packaging
Tray
Description
CONN D-SUB HD PLG 15POS R/A SLDR
Detailed Description
15 Position D-Sub, High Density Plug, Male Pins Connector
DataSheet
Mfr
EDAC Inc.
Series
633
Features
Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (M3)
Number of Rows
3
Backset Spacing
0.350" (8.89mm)
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Base Product Number
633-015
Dielectric Material
Polyester Thermoplastic
Number of Positions
15
Current Rating (Amps)
3A per Contact
Operating Temperature
-55°C ~ 85°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
15.0µin (0.38µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E) High Density
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Series | 633 |
| Features | Board Lock, Grounding Indents, Mounting Brackets, Shielded |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (M3) |
| Number of Rows | 3 |
| Backset Spacing | 0.350" (8.89mm) |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Base Product Number | 633-015 |
| Dielectric Material | Polyester Thermoplastic |
| Number of Positions | 15 |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
