Step1: Product

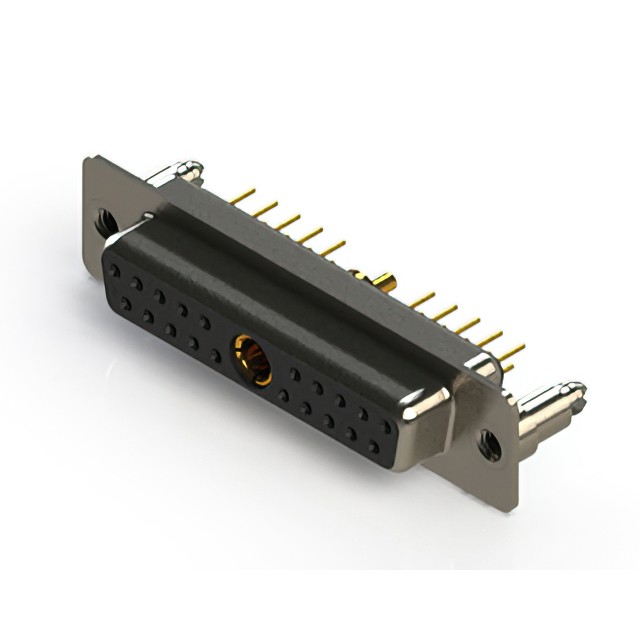

EDAC Inc. 628-21W1624-1N5
Image shown is a representation only
Manufacturer
Manufacturer No
628-21W1624-1N5
Packaging
Tray
Description
CONN D-SUB RCPT 21POS VERT SLDR
Detailed Description
21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
Mfr
EDAC Inc.
Color
Black
Series
628-C
Features
Board Lock, Shielded
Packaging
Tray
Termination
Solder
Contact Type
Signal and Power
Mounting Type
Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Board Side (4-40)
Number of Rows
2
Voltage Rating
125V
Connector Style
D-Sub, Combo
Contact Material
Copper Alloy
Base Product Number
628-21W
Dielectric Material
Polyester Thermoplastic
Number of Positions
21 (20 + 1 Power)
Current Rating (Amps)
5A, 10A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B) - 21W1
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Color | Black |
| Series | 628-C |
| Features | Board Lock, Shielded |
| Packaging | Tray |
| Termination | Solder |
| Contact Type | Signal and Power |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Board Side (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Connector Style | D-Sub, Combo |
| Contact Material | Copper Alloy |
| Base Product Number | 628-21W |
| Dielectric Material | Polyester Thermoplastic |
| Number of Positions | 21 (20 + 1 Power) |
| Current Rating (Amps) | 5A, 10A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 |
