Step1: Product

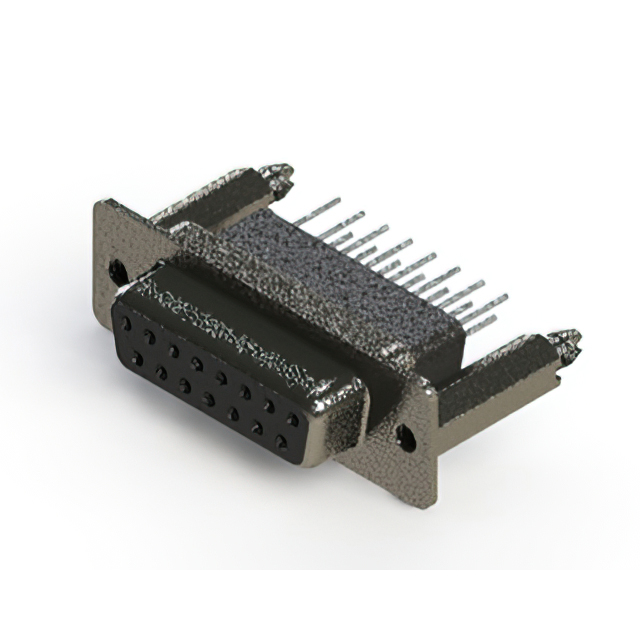

EDAC Inc. 628-015-281-076
Image shown is a representation only
Manufacturer
Manufacturer No
628-015-281-076
Packaging
Tray
Description
CONN D-SUB RCPT 15POS VERT SLDR
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
EDAC Inc.
Color
Black
Series
628 (Metal)
Features
Board Lock, Shielded
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Board Side (4-40)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
628-015
Dielectric Material
Polyester Thermoplastic
Number of Positions
15
Current Rating (Amps)
3A per Contact
Operating Temperature
-55°C ~ 85°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Color | Black |
| Series | 628 (Metal) |
| Features | Board Lock, Shielded |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Board Side (4-40) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | 628-015 |
| Dielectric Material | Polyester Thermoplastic |
| Number of Positions | 15 |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
