Step1: Product

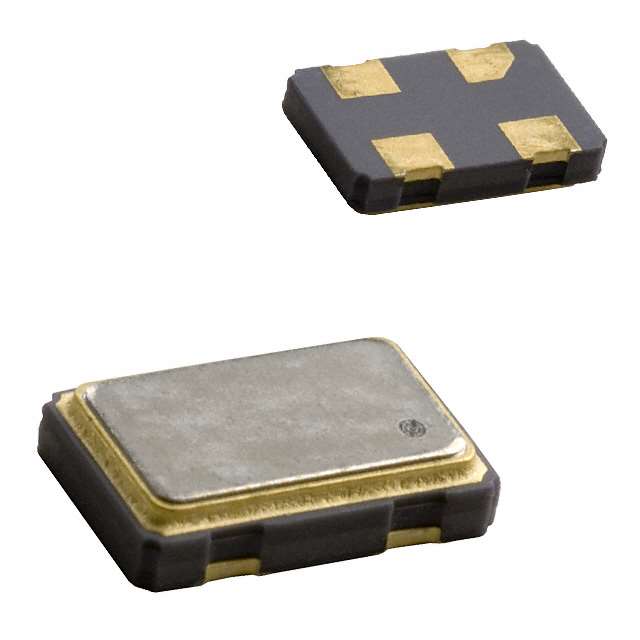

ECS Inc. ECS-UPO-3X5
Image shown is a representation only
Manufacturer
Manufacturer No
ECS-UPO-3X5
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
XTAL OSC PROG BLANK 1MHZ-125MHZ
Detailed Description
XO (Standard) CMOS 1 MHz ~ 125 MHz Programmable Oscillator 3.3V, 5V Enable/Disable 4-SMD, No Lead
Datasheet
Type
XO (Standard)
Output
CMOS
Function
Enable/Disable
Packaging
Tape & Reel (TR)
Manufacturer
ECS Inc.
Mounting Type
Surface Mount
Base Resonator
Crystal
Package / Case
4-SMD, No Lead
Size / Dimension
0.197" L x 0.124" W (5.00mm x 3.15mm)
Voltage - Supply
3.3V, 5V
Programmable Type
Blank (User Must Program)
Frequency Stability
±50ppm, ±100ppm
Height - Seated (Max)
0.043" (1.09mm)
Operating Temperature
-40°C ~ 85°C, 0° ~ 70°C
Current - Supply (Max)
50mA
Available Frequency Range
1 MHz ~ 125 MHz
| Attribute | Value |
|---|---|
| Type | XO (Standard) |
| Output | CMOS |
| Function | Enable/Disable |
| Packaging | Tape & Reel (TR) |
| Manufacturer | ECS Inc. |
| Mounting Type | Surface Mount |
| Base Resonator | Crystal |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.124" W (5.00mm x 3.15mm) |
| Voltage - Supply | 3.3V, 5V |
| Programmable Type | Blank (User Must Program) |
| Frequency Stability | ±50ppm, ±100ppm |
| Height - Seated (Max) | 0.043" (1.09mm) |
| Operating Temperature | -40°C ~ 85°C, 0° ~ 70°C |
| Current - Supply (Max) | 50mA |
| Available Frequency Range | 1 MHz ~ 125 MHz |
