Step1: Product
ECS Inc. ECS-P53-A

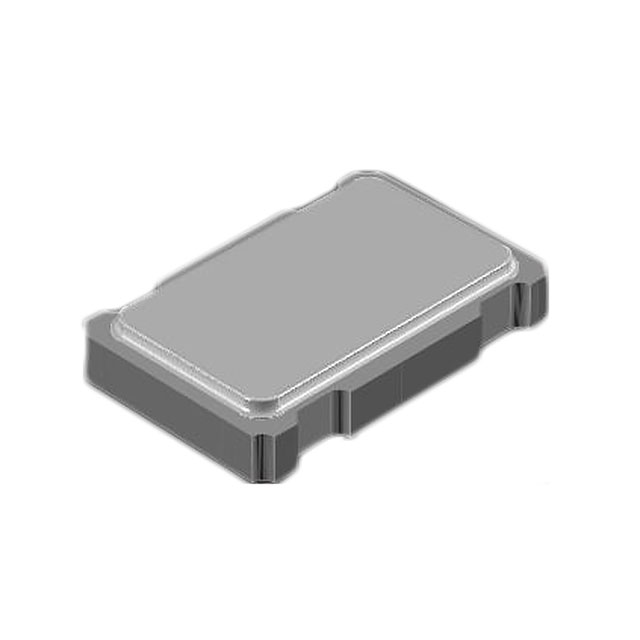

Image shown is a representation only
Manufacturer
Manufacturer No
ECS-P53-A
Package
4-SMD, No Lead
Packaging
Tube
Description
XTAL OSC PROG XO HCMOS 3.3V
Detailed Description
XO (Standard) HCMOS 1 MHz ~ 125 MHz Programmable Oscillator 3.3V Enable/Disable 4-SMD, No Lead
DataSheet
Type
XO (Standard)
Output
HCMOS
Series
ECS-P53
Function
Enable/Disable
Packaging
Tube
Part Status
Active
Manufacturer
ECS Inc.
Mounting Type
Surface Mount
Base Resonator
Crystal
Package / Case
4-SMD, No Lead
Size / Dimension
0.197" L x 0.126" W (5.00mm x 3.20mm)
Voltage - Supply
3.3V
Programmable Type
Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Height - Seated (Max)
0.051" (1.30mm)
Operating Temperature
0°C ~ 70°C
Current - Supply (Max)
30mA
Supplier Device Package
4-SMD (5x3.2)
Available Frequency Range
1 MHz ~ 125 MHz
Frequency Stability (Total)
±100ppm
| Attribute | Value |
|---|---|
| Type | XO (Standard) |
| Output | HCMOS |
| Series | ECS-P53 |
| Function | Enable/Disable |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | ECS Inc. |
| Mounting Type | Surface Mount |
| Base Resonator | Crystal |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Voltage - Supply | 3.3V |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Height - Seated (Max) | 0.051" (1.30mm) |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply (Max) | 30mA |
| Supplier Device Package | 4-SMD (5x3.2) |
| Available Frequency Range | 1 MHz ~ 125 MHz |
| Frequency Stability (Total) | ±100ppm |
