Step1: Product

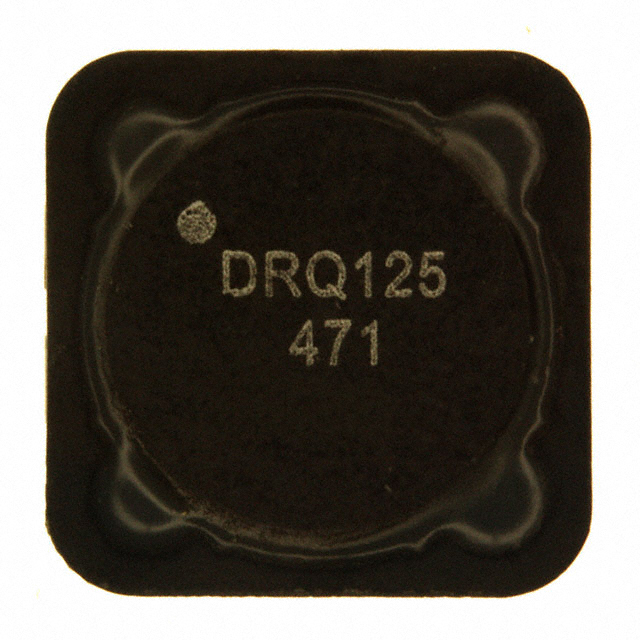

Eaton - Electronics Division DRQ125-471-R
Image shown is a representation only
Manufacturer
Manufacturer No
DRQ125-471-R
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
INDUCT ARRAY 2 COIL 473.1UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 1.892 mH Inductance - Connected in Series 473.1 µH Inductance - Connected in Parallel 718mOhm DC Resistance (DCR) - Parallel 870 mA Nonstandard
DataSheet
Height
0.236" (6.00mm)
Series
DRQ
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Part Status
Active
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
434 mA
Current Rating - Parallel
870 mA
Current Saturation - Series
510 mA
DC Resistance (DCR) - Series
2.87Ohm
Current Saturation - Parallel
1.02 A
DC Resistance (DCR) - Parallel
718mOhm
Inductance - Connected In Series
1.892 mH
Inductance - Connected In Parallel
473.1 µH
| Attribute | Value |
|---|---|
| Height | 0.236" (6.00mm) |
| Series | DRQ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Active |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 434 mA |
| Current Rating - Parallel | 870 mA |
| Current Saturation - Series | 510 mA |
| DC Resistance (DCR) - Series | 2.87Ohm |
| Current Saturation - Parallel | 1.02 A |
| DC Resistance (DCR) - Parallel | 718mOhm |
| Inductance - Connected In Series | 1.892 mH |
| Inductance - Connected In Parallel | 473.1 µH |
