Eaton - Electronics Division DRAQ127-150-R

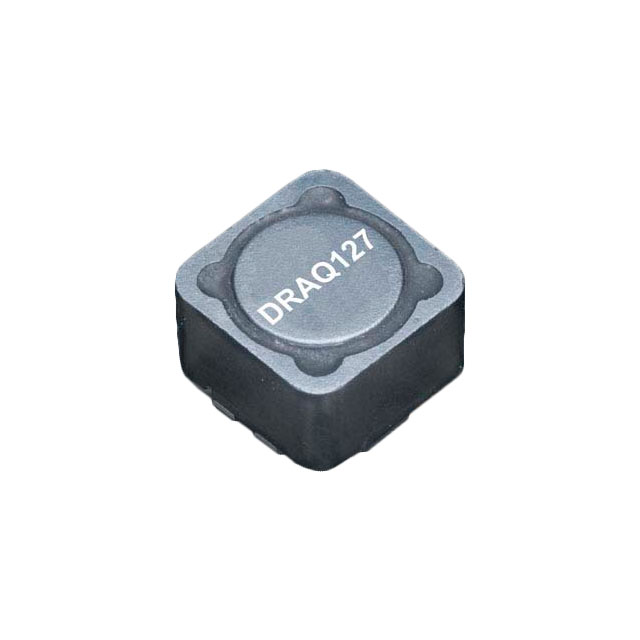

Image shown is a representation only
Manufacturer
Manufacturer No
DRAQ127-150-R
Quantity
270
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
INDUCT ARRAY 2 COIL 14.9UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 59.6 µH Inductance - Connected in Series 14.9 µH Inductance - Connected in Parallel 32mOhm Max DC Resistance (DCR) - Parallel 4.83 A Nonstandard
DataSheet
Height
0.315" (8.00mm)
Series
DRAQ127
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±25%
Part Status
Active
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.480" L x 0.480" W (12.20mm x 12.20mm)
Operating Temperature
-40°C ~ 165°C
Current Rating - Series
2.41 A
Current Rating - Parallel
4.83 A
Current Saturation - Series
3.61 A
DC Resistance (DCR) - Series
128mOhm Max
Current Saturation - Parallel
7.23 A
DC Resistance (DCR) - Parallel
32mOhm Max
Inductance - Connected In Series
59.6 µH
Inductance - Connected In Parallel
14.9 µH
| Attribute | Value |
|---|---|
| Height | 0.315" (8.00mm) |
| Series | DRAQ127 |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Operating Temperature | -40°C ~ 165°C |
| Current Rating - Series | 2.41 A |
| Current Rating - Parallel | 4.83 A |
| Current Saturation - Series | 3.61 A |
| DC Resistance (DCR) - Series | 128mOhm Max |
| Current Saturation - Parallel | 7.23 A |
| DC Resistance (DCR) - Parallel | 32mOhm Max |
| Inductance - Connected In Series | 59.6 µH |
| Inductance - Connected In Parallel | 14.9 µH |
