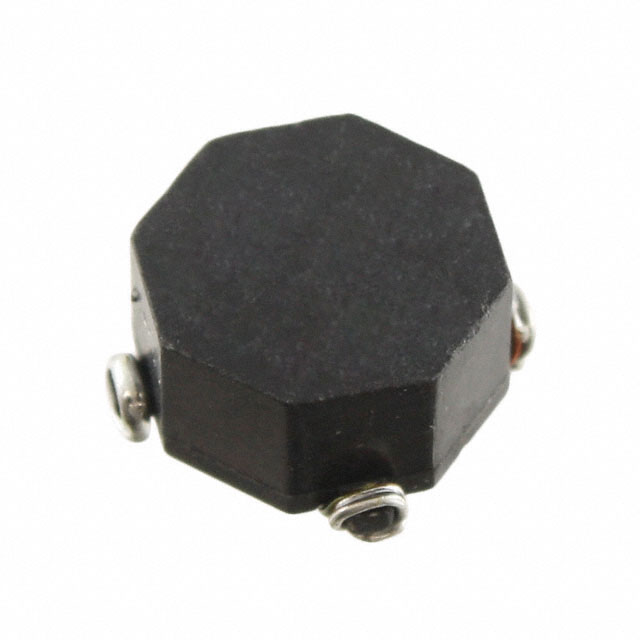

Eaton - Electronics Division CTX5-4A-R
Image shown is a representation only
Manufacturer
Manufacturer No
CTX5-4A-R
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 4.26UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 17.05 µH Inductance - Connected in Series 4.26 µH Inductance - Connected in Parallel 8.5mOhm Max DC Resistance (DCR) - Parallel 7.21 A Nonstandard
Datasheet
Height
0.250" (6.35mm)
Series
OCTA-PAC® PLUS
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±25%
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.550" L x 0.550" W (13.97mm x 13.97mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
3.61 A
Current Rating - Parallel
7.21 A
Current Saturation - Series
3.21 A
DC Resistance (DCR) - Series
33.9mOhm Max
Current Saturation - Parallel
6.43 A
DC Resistance (DCR) - Parallel
8.5mOhm Max
Inductance - Connected In Series
17.05 µH
Inductance - Connected In Parallel
4.26 µH
| Attribute | Value |
|---|---|
| Height | 0.250" (6.35mm) |
| Series | OCTA-PAC® PLUS |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 3.61 A |
| Current Rating - Parallel | 7.21 A |
| Current Saturation - Series | 3.21 A |
| DC Resistance (DCR) - Series | 33.9mOhm Max |
| Current Saturation - Parallel | 6.43 A |
| DC Resistance (DCR) - Parallel | 8.5mOhm Max |
| Inductance - Connected In Series | 17.05 µH |
| Inductance - Connected In Parallel | 4.26 µH |
