Step1: Product

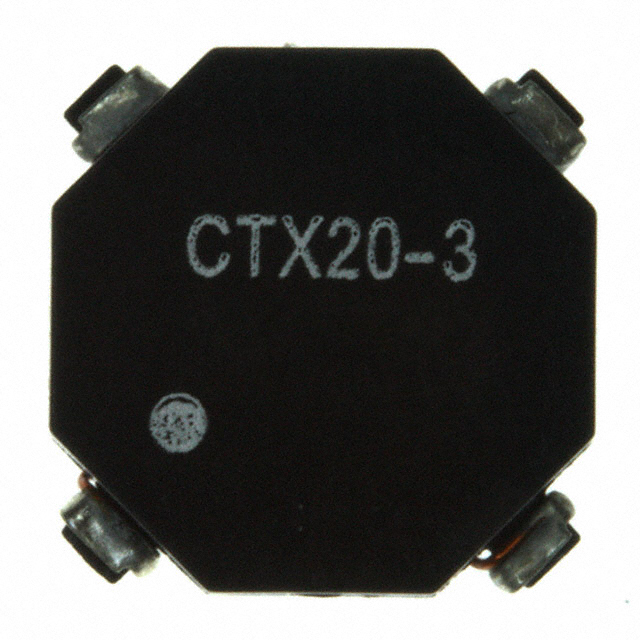

Eaton - Electronics Division CTX20-3-R
Image shown is a representation only
Manufacturer
Manufacturer No
CTX20-3-R
Date Code
06+
Quantity
644
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
INDUCT ARRAY 2 COIL 20.18UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 80.74 µH Inductance - Connected in Series 20.18 µH Inductance - Connected in Parallel 78mOhm Max DC Resistance (DCR) - Parallel 1.5 A Nonstandard
Datasheet
Height
0.190" (4.83mm)
Series
OCTA-PAC®
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.550" L x 0.550" W (13.97mm x 13.97mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
750 mA
Current Rating - Parallel
1.5 A
DC Resistance (DCR) - Series
312mOhm Max
DC Resistance (DCR) - Parallel
78mOhm Max
Inductance - Connected In Series
80.74 µH
Inductance - Connected In Parallel
20.18 µH
| Attribute | Value |
|---|---|
| Height | 0.190" (4.83mm) |
| Series | OCTA-PAC® |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 750 mA |
| Current Rating - Parallel | 1.5 A |
| DC Resistance (DCR) - Series | 312mOhm Max |
| DC Resistance (DCR) - Parallel | 78mOhm Max |
| Inductance - Connected In Series | 80.74 µH |
| Inductance - Connected In Parallel | 20.18 µH |
