Eaton - Electronics Division CTX20-1P-R

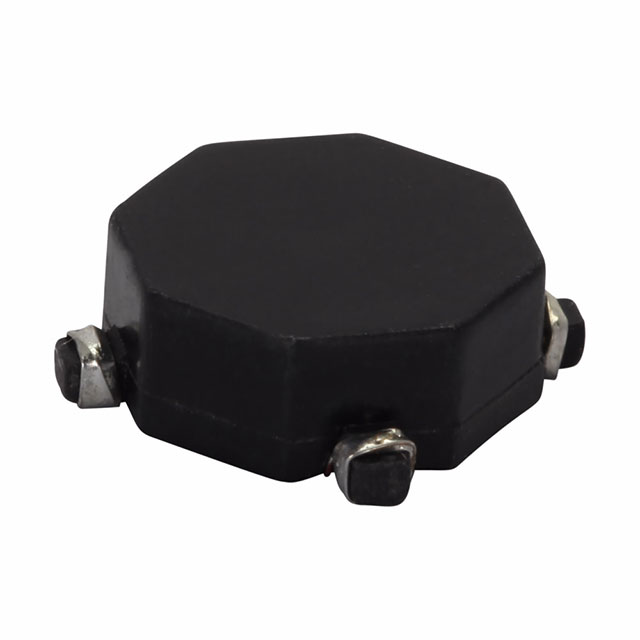

Image shown is a representation only
Manufacturer
Manufacturer No
CTX20-1P-R
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
INDUCT ARRAY 2 COIL 20.46UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 81.83 µH Inductance - Connected in Series 20.46 µH Inductance - Connected in Parallel 158mOhm Max DC Resistance (DCR) - Parallel 1 A Nonstandard
DataSheet
Height
0.165" (4.19mm)
Series
Econo-Pac™
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Tolerance
±20%
Part Status
Active
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.450" L x 0.450" W (11.43mm x 11.43mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
500 mA
Current Rating - Parallel
1 A
DC Resistance (DCR) - Series
634mOhm Max
DC Resistance (DCR) - Parallel
158mOhm Max
Inductance - Connected In Series
81.83 µH
Inductance - Connected In Parallel
20.46 µH
| Attribute | Value |
|---|---|
| Height | 0.165" (4.19mm) |
| Series | Econo-Pac™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Part Status | Active |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 500 mA |
| Current Rating - Parallel | 1 A |
| DC Resistance (DCR) - Series | 634mOhm Max |
| DC Resistance (DCR) - Parallel | 158mOhm Max |
| Inductance - Connected In Series | 81.83 µH |
| Inductance - Connected In Parallel | 20.46 µH |
