Step1: Product
EAO 52-273.025

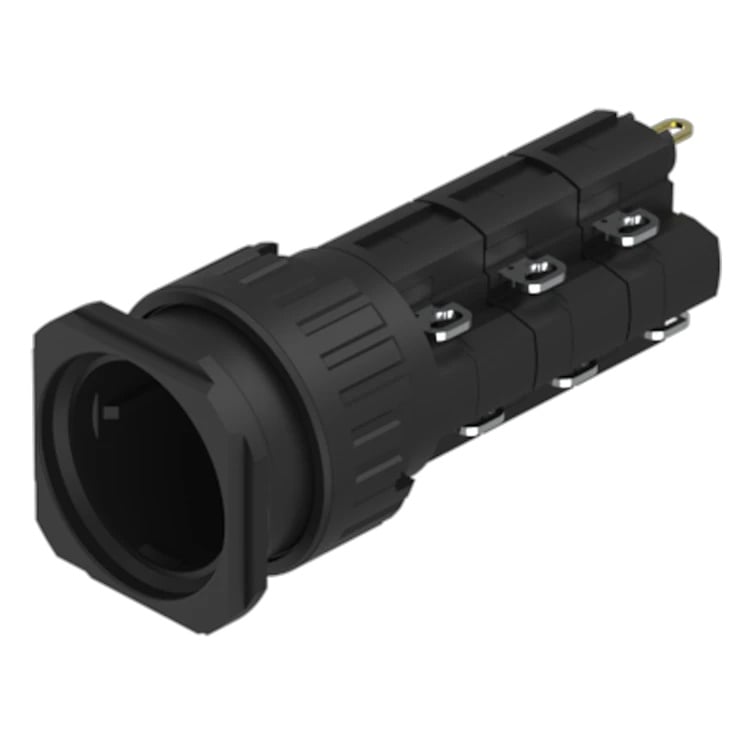

Image shown is a representation only
Manufacturer
Manufacturer No
52-273.025
Packaging
Bag
Description
ACTUATOR, OPTIONAL ILLUMINATIVE,
Detailed Description
Selector Switch 2 Position 6PST-3NO/3NC 3A (AC), 2A (DC) 125 V Panel Mount
DataSheet
Type
Standard
Series
52
Circuit
6PST-3NO/3NC
Packaging
Bag
Part Status
Active
Illumination
Illuminated
Manufacturer
EAO
Mounting Type
Panel Mount
Approval Agency
CB, CQC, CSA, DNV, ENEC, UL
Electrical Life
50,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Termination Style
Solder Lug
Ingress Protection
IP65 - Dust Tight, Water Resistant
Depth Behind Flange
36.00mm
Number of Positions
2
Voltage Rating - AC
125 V
Voltage Rating - DC
24 V
Current Rating (Amps)
3A (AC), 2A (DC)
Operating Temperature
-25°C ~ 55°C
Panel Cutout Dimensions
Circular - 16.20mm Dia
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | 52 |
| Circuit | 6PST-3NO/3NC |
| Packaging | Bag |
| Part Status | Active |
| Illumination | Illuminated |
| Manufacturer | EAO |
| Mounting Type | Panel Mount |
| Approval Agency | CB, CQC, CSA, DNV, ENEC, UL |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Depth Behind Flange | 36.00mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 3A (AC), 2A (DC) |
| Operating Temperature | -25°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
