Step1: Product
EAO 14-517.0360

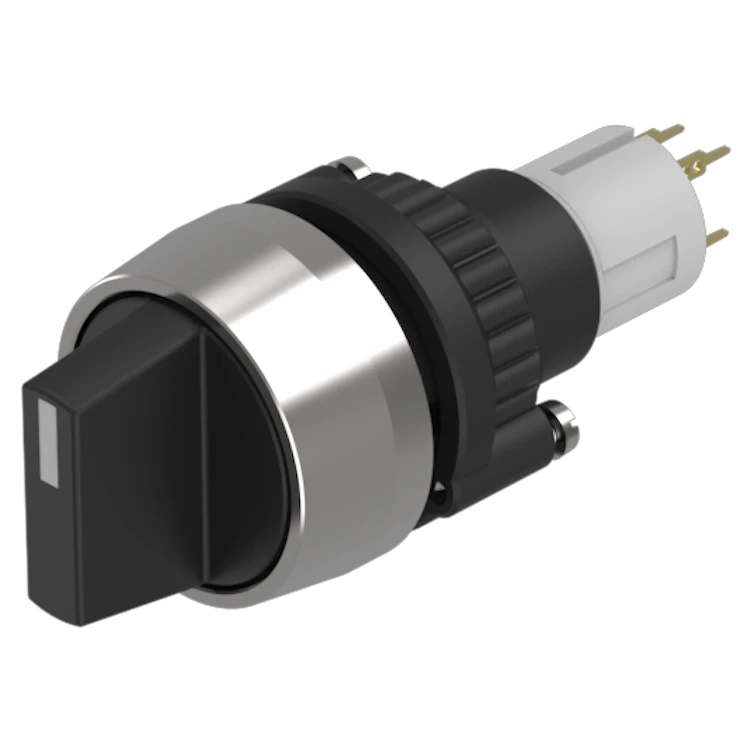

Image shown is a representation only
Manufacturer
Manufacturer No
14-517.0360
Packaging
Bag
Description
ACTUATOR, NON ILLUMINATIVE, BLAC
Detailed Description
Selector Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 V Panel Mount
DataSheet
Type
Standard
Series
14
Circuit
DPST-NO/NC
Packaging
Bag
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
EAO
Mounting Type
Panel Mount
Switch Function
On-Mom, Off-Mom
Termination Style
PC Pin, Solder Lug
Ingress Protection
IP67 - Dust Tight, Waterproof
Depth Behind Flange
52.50mm
Number of Positions
2
Voltage Rating - AC
42 V
Voltage Rating - DC
42 V
Current Rating (Amps)
100mA (AC/DC)
Panel Cutout Dimensions
Circular - 30.50mm Dia
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | 14 |
| Circuit | DPST-NO/NC |
| Packaging | Bag |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | EAO |
| Mounting Type | Panel Mount |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | PC Pin, Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Depth Behind Flange | 52.50mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Panel Cutout Dimensions | Circular - 30.50mm Dia |
