Step1: Product
EAO 14-237.025K2

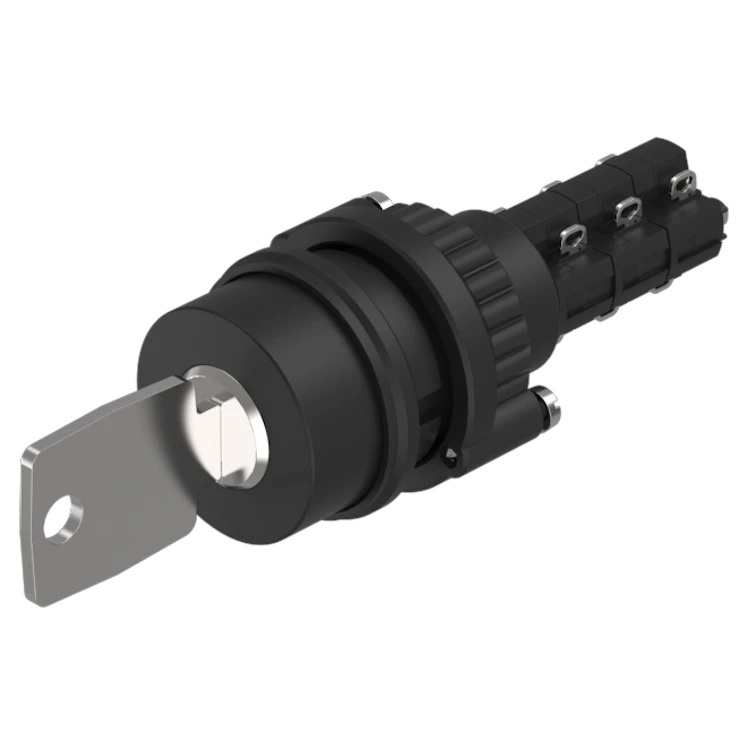

Image shown is a representation only
Manufacturer
Manufacturer No
14-237.025K2
Packaging
Bag
Description
ACTUATOR, NATURE, ALUMINIUM, ANO
Detailed Description
Keylock Switch 2 Position 6PST-3NO/3NC 5A (AC) 250 VAC 24 VDC Panel Mount
DataSheet
Series
14
Circuit
6PST-3NO/3NC
Packaging
Bag
Part Status
Active
Manufacturer
EAO
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
90°
Contact Finish
Gold
Contact Timing
Not Specified
Electrical Life
50,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Termination Style
Solder Lug
Depth Behind Flange
56.00mm
Number of Positions
2
Voltage Rating - AC
250 V
Voltage Rating - DC
24 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 55°C
Key Removable Positions
Right
Panel Cutout Dimensions
Circular - 22.30mm Dia
| Attribute | Value |
|---|---|
| Series | 14 |
| Circuit | 6PST-3NO/3NC |
| Packaging | Bag |
| Part Status | Active |
| Manufacturer | EAO |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Depth Behind Flange | 56.00mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 55°C |
| Key Removable Positions | Right |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
