Step1: Product
EAO 14-235.022K

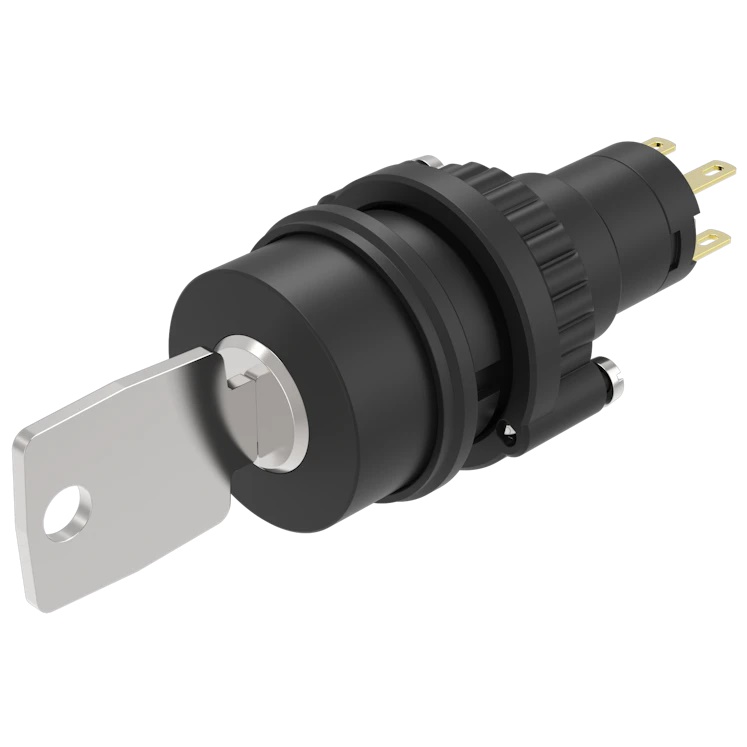

Image shown is a representation only
Manufacturer
Manufacturer No
14-235.022K
Packaging
Bulk
Description
SWITCH KEYLOCK 2POS DPST 5A 250V
Detailed Description
Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
DataSheet
Series
14
Circuit
DPST-NO/NC
Features
IP65
Packaging
Bulk
Part Status
Active
Manufacturer
EAO
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
90°
Contact Timing
Not Specified
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Base Product Number
14-235
Depth Behind Flange
45.50mm
Number of Positions
2
Voltage Rating - AC
250 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 55°C
Key Removable Positions
1 only
Panel Cutout Dimensions
Circular - 22.30mm Dia
| Attribute | Value |
|---|---|
| Series | 14 |
| Circuit | DPST-NO/NC |
| Features | IP65 |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | EAO |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Timing | Not Specified |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Base Product Number | 14-235 |
| Depth Behind Flange | 45.50mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 250 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 55°C |
| Key Removable Positions | 1 only |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
