Step1: Product

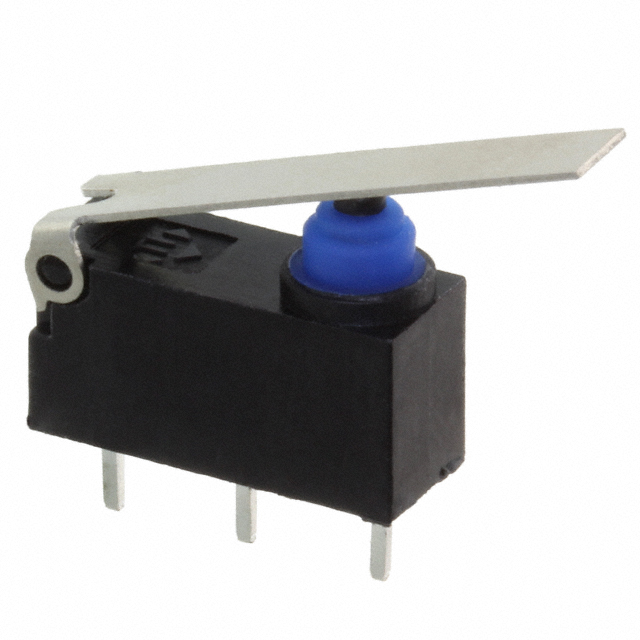

E-Switch WS0850101F050PA
Image shown is a representation only
Manufacturer
Manufacturer No
WS0850101F050PA
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 1A 24V
Detailed Description
Switch SPDT Through Hole
DataSheet
Series
WS
Circuit
SPDT
Packaging
Bulk
Part Status
Active
Manufacturer
E-Switch
Actuator Type
Lever, Straight
Mounting Type
Through Hole
Electrical Life
10,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
50gf
Switch Function
On-Mom
Termination Style
PC Pin
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
0.528" (13.4mm)
Base Product Number
WS0850
Voltage Rating - DC
24 V
Current Rating (Amps)
1A (DC)
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | WS |
| Circuit | SPDT |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | E-Switch |
| Actuator Type | Lever, Straight |
| Mounting Type | Through Hole |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 50gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 0.528" (13.4mm) |
| Base Product Number | WS0850 |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 1A (DC) |
| Operating Temperature | -25°C ~ 85°C |
