Step1: Product

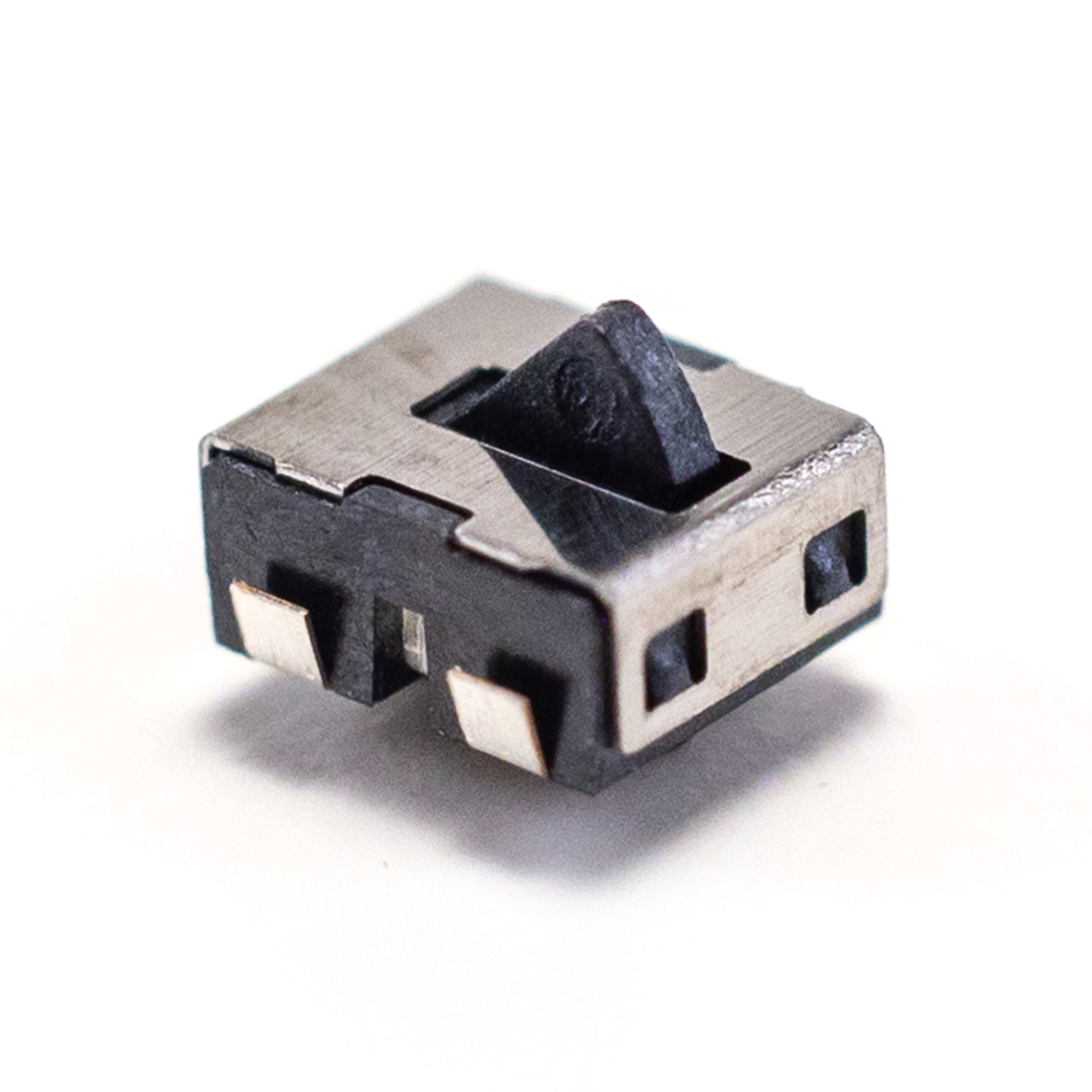

E-Switch TD4700BQ
Image shown is a representation only
Manufacturer
Manufacturer No
TD4700BQ
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH DETECT SPST-NO 0.001A 5V
Detailed Description
Switch SPST-NO Surface Mount
DataSheet
Series
TD4700
Circuit
SPST-NO
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
E-Switch
Actuator Type
Angled Toggle (Detector)
Mounting Type
Surface Mount
Electrical Life
100,000 Cycles
Mechanical Life
100,000 Cycles
Operating Force
50gf
Switch Function
Off-Mom
Termination Style
J Lead
Operating Position
0.087" (2.2mm)
Base Product Number
TD4700
Voltage Rating - DC
5 V
Current Rating (Amps)
1mA (DC)
Operating Temperature
-10°C ~ 60°C
| Attribute | Value |
|---|---|
| Series | TD4700 |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | E-Switch |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 50gf |
| Switch Function | Off-Mom |
| Termination Style | J Lead |
| Operating Position | 0.087" (2.2mm) |
| Base Product Number | TD4700 |
| Voltage Rating - DC | 5 V |
| Current Rating (Amps) | 1mA (DC) |
| Operating Temperature | -10°C ~ 60°C |
