Step1: Product
Diotec Semiconductor BZW06-13

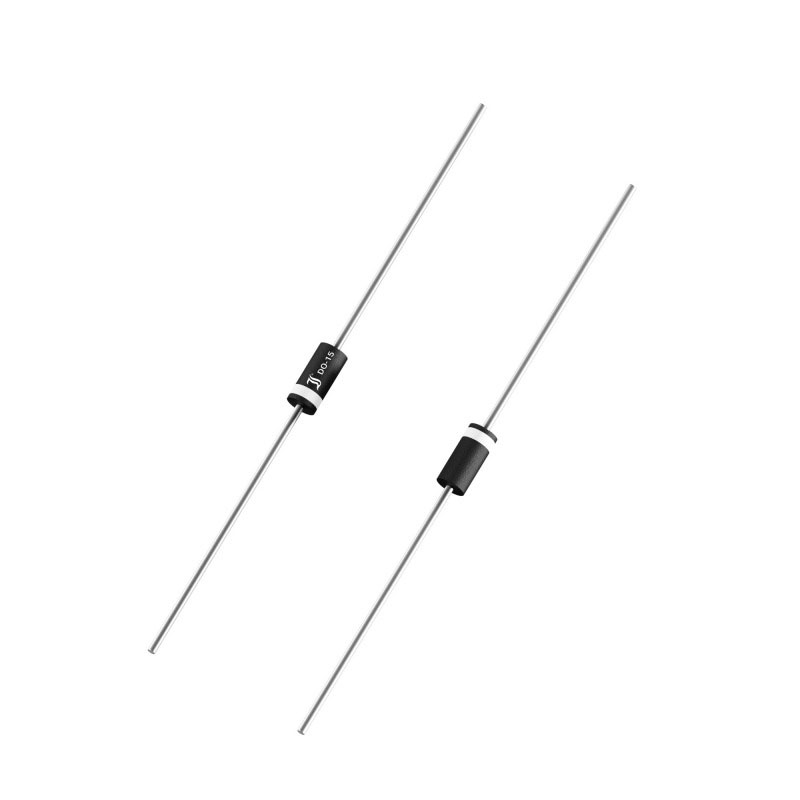

Image shown is a representation only
Manufacturer
Manufacturer No
BZW06-13
Package
DO-204AC, DO-15, Axial
Packaging
Strip
Description
TVS DIODE 12.8VWM 21.2V DO204AC
Detailed Description
21.2V Clamp 28A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
DataSheet
Mfr
Diotec Semiconductor
Type
Zener
Packaging
Strip
Part Status
Active
Applications
General Purpose
Mounting Type
Through Hole
Package / Case
DO-204AC, DO-15, Axial
Power - Peak Pulse
600W
Base Product Number
BZW06
Operating Temperature
-50°C ~ 175°C (TJ)
Power Line Protection
No
Supplier Device Package
DO-204AC (DO-15)
Unidirectional Channels
1
Voltage - Breakdown (Min)
14.3V
Voltage - Clamping (Max) @ Ipp
21.2V
Voltage - Reverse Standoff (Typ)
12.8V
Current - Peak Pulse (10/1000µs)
28A
| Attribute | Value |
|---|---|
| Mfr | Diotec Semiconductor |
| Type | Zener |
| Packaging | Strip |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Power - Peak Pulse | 600W |
| Base Product Number | BZW06 |
| Operating Temperature | -50°C ~ 175°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | DO-204AC (DO-15) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 21.2V |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Current - Peak Pulse (10/1000µs) | 28A |
