Step1: Product
Diotec Semiconductor P4SMA550CA

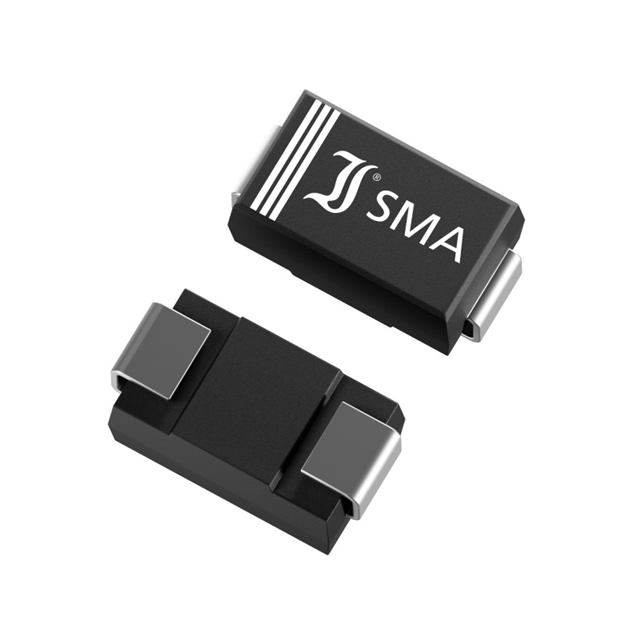

Image shown is a representation only
Manufacturer
Manufacturer No
P4SMA550CA
Quantity
3080
Availability
In Stock
Package
DO-214AC, SMA
Packaging
Strip
Description
TVS DIODE 495VWM 760VC DO214AC
Detailed Description
760V Clamp 530mA Ipp Tvs Diode Surface Mount DO-214AC (SMA)
DataSheet
Mfr
Diotec Semiconductor
Type
Zener
Packaging
Strip
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
DO-214AC, SMA
Power - Peak Pulse
400W
Operating Temperature
-50°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Supplier Device Package
DO-214AC (SMA)
Voltage - Breakdown (Min)
522V
Voltage - Clamping (Max) @ Ipp
760V
Voltage - Reverse Standoff (Typ)
495V
Current - Peak Pulse (10/1000µs)
530mA
| Attribute | Value |
|---|---|
| Mfr | Diotec Semiconductor |
| Type | Zener |
| Packaging | Strip |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400W |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Supplier Device Package | DO-214AC (SMA) |
| Voltage - Breakdown (Min) | 522V |
| Voltage - Clamping (Max) @ Ipp | 760V |
| Voltage - Reverse Standoff (Typ) | 495V |
| Current - Peak Pulse (10/1000µs) | 530mA |
