Step1: Product
Diodes Incorporated DMP610DL-7

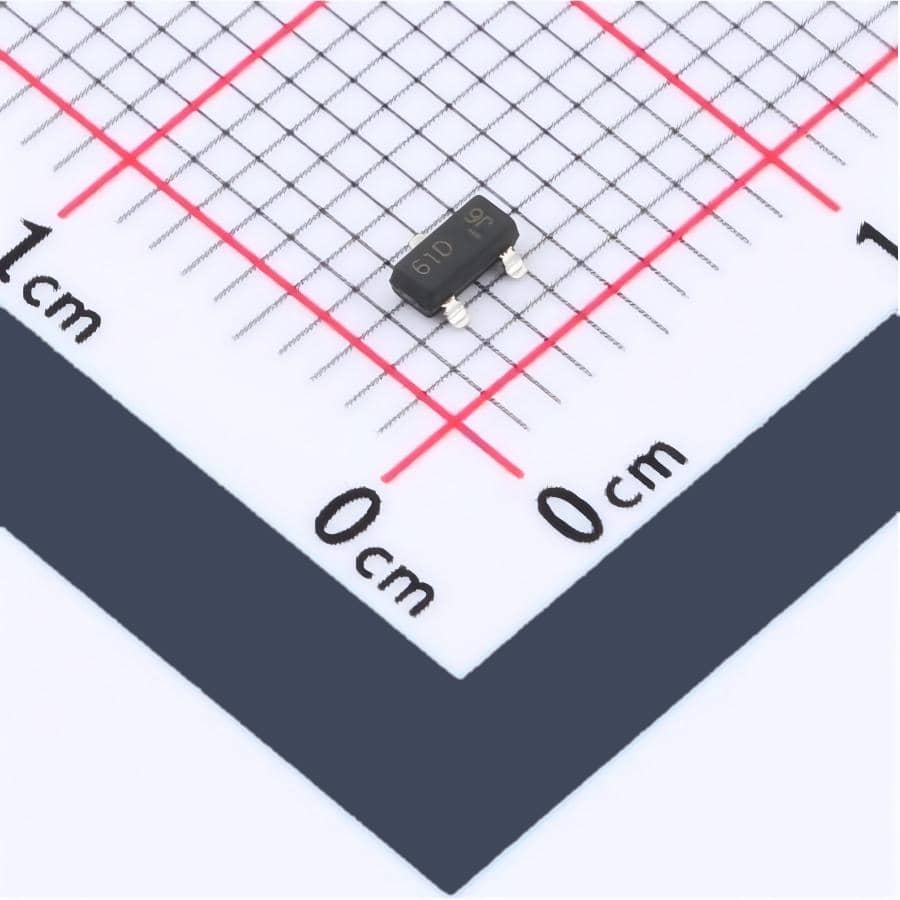

Image shown is a representation only
Manufacturer
Manufacturer No
DMP610DL-7
Date Code
2246
Quantity
306
Availability
In Stock
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET BVDSS: 41V 60V SOT23 T&R
Detailed Description
P-Channel 60 V 180mA (Ta) 310mW (Ta) Surface Mount SOT-23-3
Datasheet
Mfr
Diodes Incorporated
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Vgs(th) (Max) @ Id
2V @ 1mA
Base Product Number
DMP610
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
10Ohm @ 100mA, 5V
Power Dissipation (Max)
310mW (Ta)
Supplier Device Package
SOT-23-3
Gate Charge (Qg) (Max) @ Vgs
0.56 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
24.6 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
5V
Current - Continuous Drain (Id) @ 25°C
180mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Base Product Number | DMP610 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 100mA, 5V |
| Power Dissipation (Max) | 310mW (Ta) |
| Supplier Device Package | SOT-23-3 |
| Gate Charge (Qg) (Max) @ Vgs | 0.56 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 24.6 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Current - Continuous Drain (Id) @ 25°C | 180mA (Ta) |
