Step1: Product

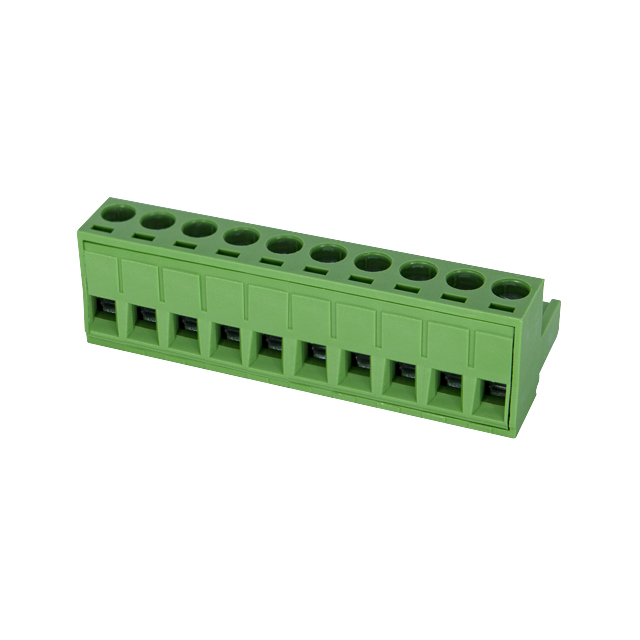

Dinkle Corporation, USA 2ESDV-10P
Image shown is a representation only
Manufacturer
Manufacturer No
2ESDV-10P
Packaging
Bulk
Description
TERM BLOCK PLUG 10POS 5.08MM
Detailed Description
10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.200" (5.08mm)
Series
2ESDV
Packaging
Bulk
Current - UL
15 A
Manufacturer
Dinkle Corporation, USA
Voltage - UL
300 V
Current - IEC
18A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
600 V
Plug Wire Entry
180°
Number of Levels
1
Termination Style
Screw - Rising Cage Clamp
Number of Positions
10
Positions Per Level
10
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 120°C
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | 2ESDV |
| Packaging | Bulk |
| Current - UL | 15 A |
| Manufacturer | Dinkle Corporation, USA |
| Voltage - UL | 300 V |
| Current - IEC | 18A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 600 V |
| Plug Wire Entry | 180° |
| Number of Levels | 1 |
| Termination Style | Screw - Rising Cage Clamp |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 120°C |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
