Step1: Product

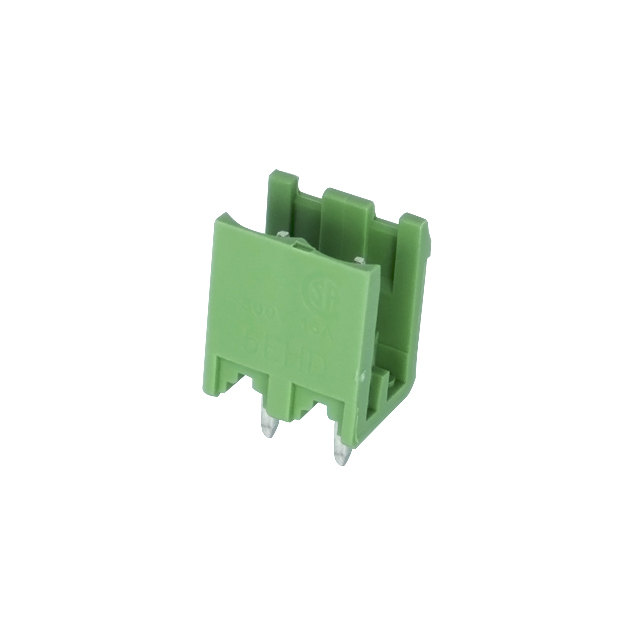

Dinkle Corporation, USA 5EHDV-02P
Image shown is a representation only
Manufacturer
Manufacturer No
5EHDV-02P
Packaging
Bulk
Description
TERM BLOCK HDR 2POS 5MM
Detailed Description
2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
Datasheet
Type
Header, Male Pins, Shrouded (2 Side)
Color
Green
Pitch
0.197" (5.00mm)
Series
5EHDV
Packaging
Bulk
Current - UL
15 A
Manufacturer
Dinkle Corporation, USA
Voltage - UL
300 V
Current - IEC
18A
Mounting Type
Through Hole
Voltage - IEC
630 V
Number of Levels
1
Termination Style
Solder
Header Orientation
Vertical
Number of Positions
2
Positions Per Level
2
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 120°C
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | 5EHDV |
| Packaging | Bulk |
| Current - UL | 15 A |
| Manufacturer | Dinkle Corporation, USA |
| Voltage - UL | 300 V |
| Current - IEC | 18A |
| Mounting Type | Through Hole |
| Voltage - IEC | 630 V |
| Number of Levels | 1 |
| Termination Style | Solder |
| Header Orientation | Vertical |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 120°C |
