Step1: Product

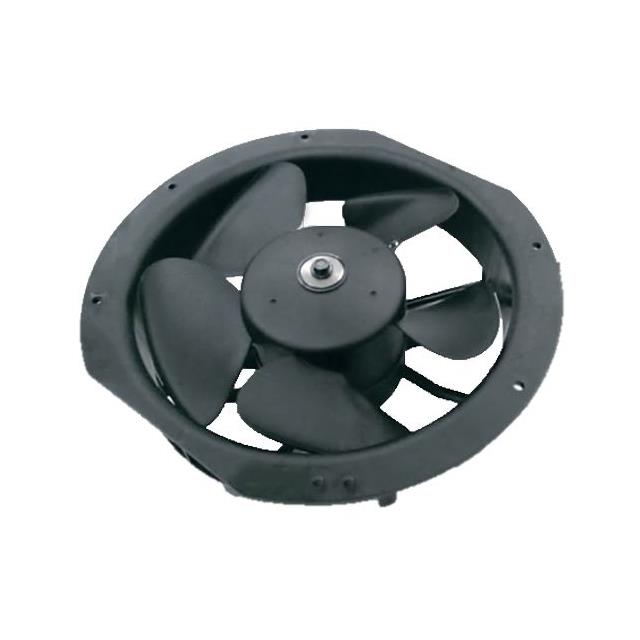

Delta Electronics AFL2224HW-00
Image shown is a representation only
Manufacturer
Manufacturer No
AFL2224HW-00
Packaging
Box
Description
AXIAL 222X 80MM 24VDC IP56
Detailed Description
Fan Tubeaxial 24VDC Rectangular/Rounded - 203mm L x 195mm H Ball 378.6 CFM (10.60m³/min) 4 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
2800 RPM
Noise
60.0dB(A)
Width
85.70mm
Series
AFL
Air Flow
378.6 CFM (10.60m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
21.6 W
Voltage Range
21.6 ~ 26.4VDC
Approval Agency
CE, cURus, TUV
Static Pressure
0.660 in H2O (164.4 Pa)
Voltage - Rated
24VDC
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Rectangular/Rounded - 203mm L x 195mm H
Ingress Protection
IP56 - Dust Protected, Water Resistant
Current Rating (Amps)
0.900A
Operating Temperature
-40°C ~ 60°C
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 2800 RPM |
| Noise | 60.0dB(A) |
| Width | 85.70mm |
| Series | AFL |
| Air Flow | 378.6 CFM (10.60m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 21.6 W |
| Voltage Range | 21.6 ~ 26.4VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 0.660 in H2O (164.4 Pa) |
| Voltage - Rated | 24VDC |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Rectangular/Rounded - 203mm L x 195mm H |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Current Rating (Amps) | 0.900A |
| Operating Temperature | -40°C ~ 60°C |
