Step1: Product

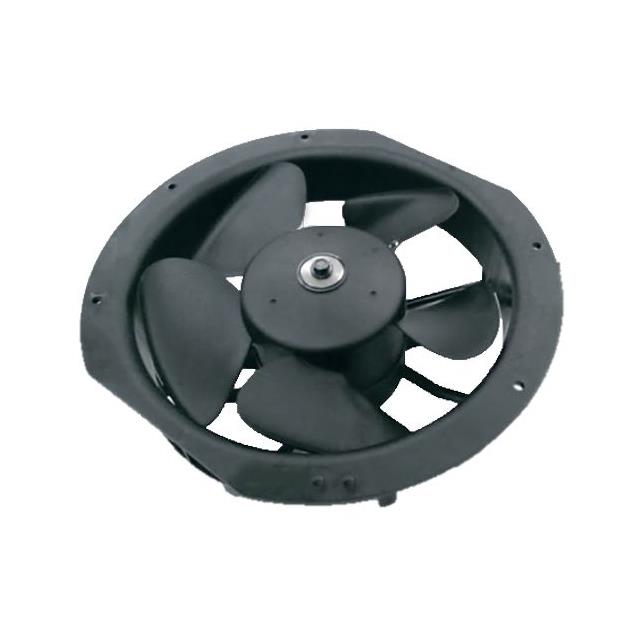

Delta Electronics AFL2212LW-00GYQ
Image shown is a representation only
Manufacturer
Manufacturer No
AFL2212LW-00GYQ
Packaging
Box
Description
AXIA 222X80MM 12VDC IP56
Detailed Description
Fan Tubeaxial 12VDC Rectangular/Rounded - 203mm L x 195mm H Ball 170.1 CFM (4.76m³/min) 3 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
1400 RPM
Noise
40.0dB(A)
Width
85.70mm
Series
AFL
Air Flow
170.1 CFM (4.76m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control
Packaging
Box
Part Status
Active
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
4.8 W
Voltage Range
10.8 ~ 13.2VDC
Approval Agency
CE, cURus, TUV
Static Pressure
0.180 in H2O (44.8 Pa)
Voltage - Rated
12VDC
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Rectangular/Rounded - 203mm L x 195mm H
Ingress Protection
IP56 - Dust Protected, Water Resistant
Current Rating (Amps)
0.400A
Operating Temperature
-40°C ~ 60°C
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 1400 RPM |
| Noise | 40.0dB(A) |
| Width | 85.70mm |
| Series | AFL |
| Air Flow | 170.1 CFM (4.76m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control |
| Packaging | Box |
| Part Status | Active |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 4.8 W |
| Voltage Range | 10.8 ~ 13.2VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 0.180 in H2O (44.8 Pa) |
| Voltage - Rated | 12VDC |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Rectangular/Rounded - 203mm L x 195mm H |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Current Rating (Amps) | 0.400A |
| Operating Temperature | -40°C ~ 60°C |
