Step1: Product

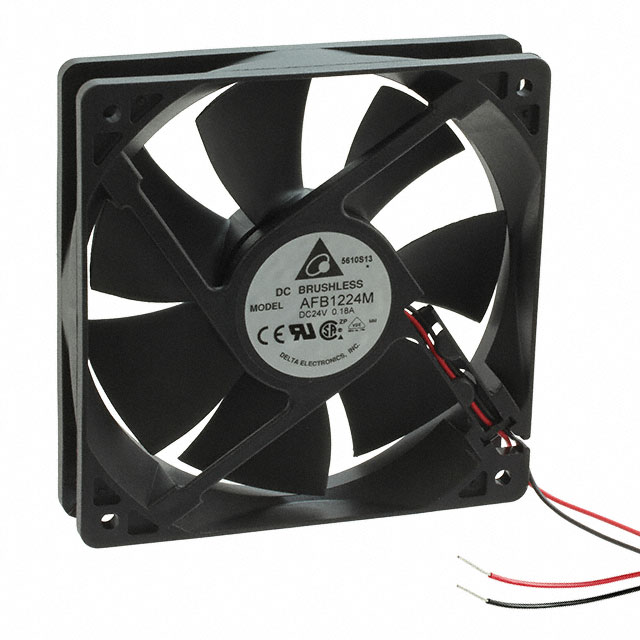

Delta Electronics AFB1224M
Image shown is a representation only
Manufacturer
Manufacturer No
AFB1224M
Packaging
Box
Description
FAN AXIAL 120X25.4MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 73.8 CFM (2.07m³/min) 2 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
2200 RPM
Noise
35.5dB(A)
Width
25.40mm
Series
AFB
Weight
0.437 lb (198.00 g)
Air Flow
73.8 CFM (2.07m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection
Packaging
Box
Part Status
Active
Termination
2 Wire Leads
Bearing Type
Ball
Power (Watts)
2.88 W
Voltage Range
14 ~ 27.6VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
0.203 in H2O (50.6 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
AFB1224
Current Rating (Amps)
0.120A
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 2200 RPM |
| Noise | 35.5dB(A) |
| Width | 25.40mm |
| Series | AFB |
| Weight | 0.437 lb (198.00 g) |
| Air Flow | 73.8 CFM (2.07m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Packaging | Box |
| Part Status | Active |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 2.88 W |
| Voltage Range | 14 ~ 27.6VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 0.203 in H2O (50.6 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | AFB1224 |
| Current Rating (Amps) | 0.120A |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
