Step1: Product
Delta Electronics AFB1224GHE-C

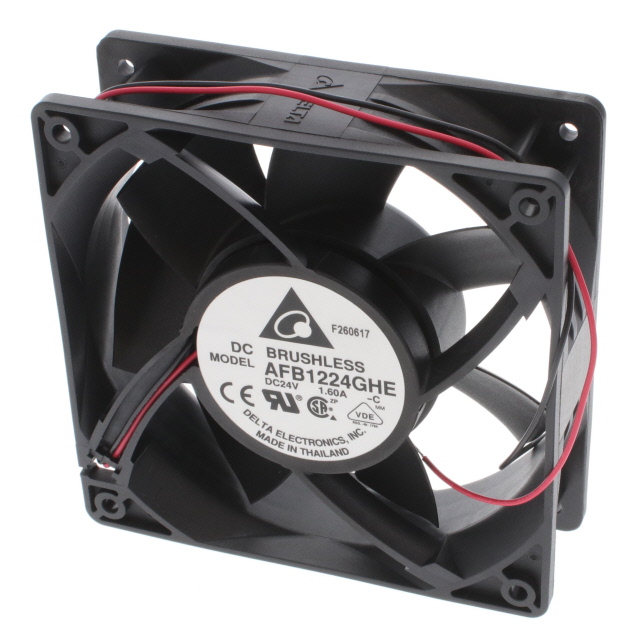

Image shown is a representation only
Manufacturer
Manufacturer No
AFB1224GHE-C
Packaging
Box
Description
FAN AXIAL 120X38MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 241.0 CFM (6.75m³/min) 2 Wire Leads
DataSheet
Mfr
Delta Electronics
RPM
5200 RPM
Noise
62.0dB(A)
Width
38.00mm
Series
AFB
Weight
0.728 lb (330.22 g)
Air Flow
241.0 CFM (6.75m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection
Packaging
Box
Part Status
Obsolete
Termination
2 Wire Leads
Bearing Type
Ball
Power (Watts)
27.6 W
Voltage Range
14 ~ 28VDC
Approval Agency
CE, CSA, UL, VDE
Static Pressure
1.082 in H2O (269.5 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
AFB1224
Current Rating (Amps)
1.15A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 5200 RPM |
| Noise | 62.0dB(A) |
| Width | 38.00mm |
| Series | AFB |
| Weight | 0.728 lb (330.22 g) |
| Air Flow | 241.0 CFM (6.75m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 27.6 W |
| Voltage Range | 14 ~ 28VDC |
| Approval Agency | CE, CSA, UL, VDE |
| Static Pressure | 1.082 in H2O (269.5 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | AFB1224 |
| Current Rating (Amps) | 1.15A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
