Step1: Product
Delta Electronics/Components 1008CS-271EGTS

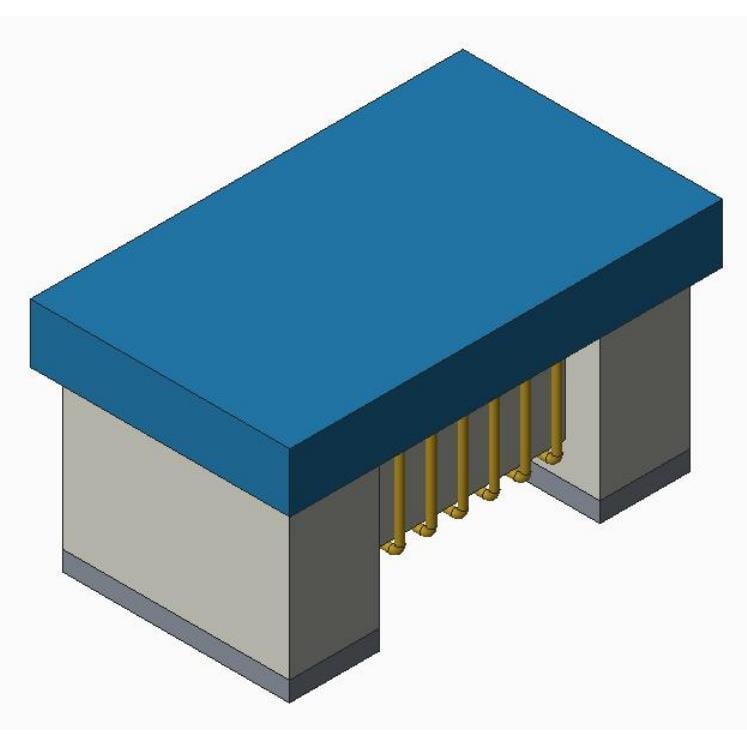

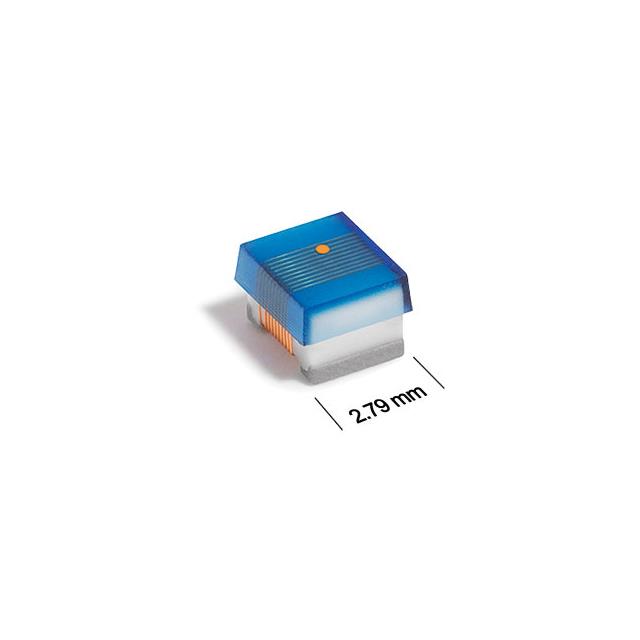

Image shown is a representation only
Manufacturer
Manufacturer No
1008CS-271EGTS
Package
1008 (2520 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 270NH 690MA 910 MOHM
Detailed Description
270 nH Unshielded Drum Core, Wirewound Inductor 690 mA 910mOhm 1008 (2520 Metric)
Datasheet
Mfr
Delta Electronics/Components
Type
Drum Core, Wirewound
Series
1008CS
Q @ Freq
45 @ 100MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±2%
Inductance
270 nH
Mounting Type
Surface Mount
Package / Case
1008 (2520 Metric)
Material - Core
Ceramic
Size / Dimension
0.115" L x 0.110" W (2.92mm x 2.79mm)
Base Product Number
1008CS
DC Resistance (DCR)
910mOhm
Current Rating (Amps)
690 mA
Height - Seated (Max)
0.080" (2.03mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1008
Frequency - Self Resonant
600MHz
Inductance Frequency - Test
25 MHz
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics/Components |
| Type | Drum Core, Wirewound |
| Series | 1008CS |
| Q @ Freq | 45 @ 100MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±2% |
| Inductance | 270 nH |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Base Product Number | 1008CS |
| DC Resistance (DCR) | 910mOhm |
| Current Rating (Amps) | 690 mA |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1008 |
| Frequency - Self Resonant | 600MHz |
| Inductance Frequency - Test | 25 MHz |
