Step1: Product

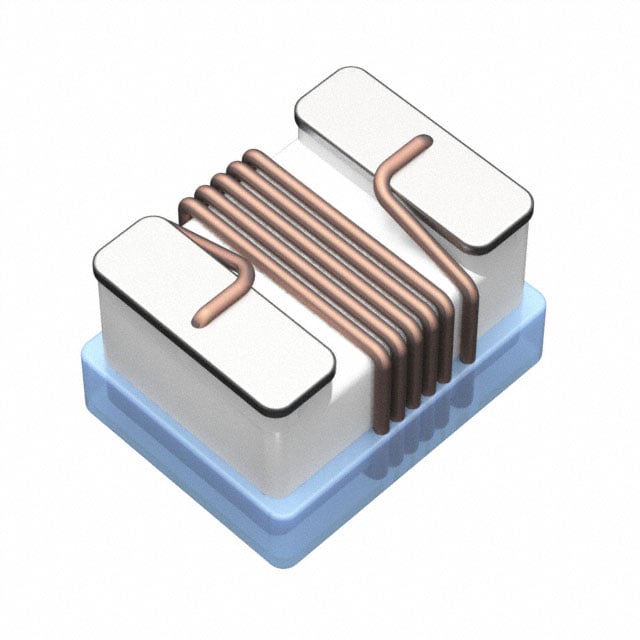

Delta Electronics/Components 0805CS-820EKTS
Image shown is a representation only
Manufacturer
Manufacturer No
0805CS-820EKTS
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 82NH 400MA 420 MOHM
Detailed Description
82 nH Unshielded Drum Core, Wirewound Inductor 400 mA 420mOhm 0805 (2012 Metric)
DataSheet
Mfr
Delta Electronics/Components
Type
Drum Core, Wirewound
Series
0805CS
Q @ Freq
65 @ 500MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±10%
Inductance
82 nH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Material - Core
Ceramic
Size / Dimension
0.090" L x 0.071" W (2.29mm x 1.80mm)
Base Product Number
0805CS
DC Resistance (DCR)
420mOhm
Current Rating (Amps)
400 mA
Height - Seated (Max)
0.061" (1.55mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0805
Frequency - Self Resonant
1.3GHz
Inductance Frequency - Test
150 MHz
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics/Components |
| Type | Drum Core, Wirewound |
| Series | 0805CS |
| Q @ Freq | 65 @ 500MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 82 nH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.090" L x 0.071" W (2.29mm x 1.80mm) |
| Base Product Number | 0805CS |
| DC Resistance (DCR) | 420mOhm |
| Current Rating (Amps) | 400 mA |
| Height - Seated (Max) | 0.061" (1.55mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0805 |
| Frequency - Self Resonant | 1.3GHz |
| Inductance Frequency - Test | 150 MHz |
