Step1: Product

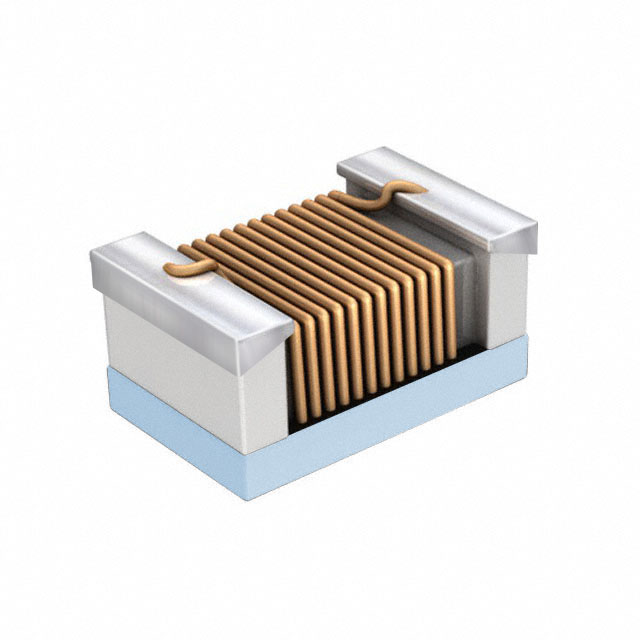

Delta Electronics/Components 0402HP-1N0EKTS
Image shown is a representation only
Manufacturer
Manufacturer No
0402HP-1N0EKTS
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 1NH 2.3A 30 MOHM SMD
Detailed Description
1 nH Unshielded Drum Core, Wirewound Inductor 2.3 A 30mOhm 0402 (1005 Metric)
DataSheet
Mfr
Delta Electronics/Components
Type
Drum Core, Wirewound
Series
0402HP
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Tolerance
±10%
Inductance
1 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.045" L x 0.028" W (1.15mm x 0.70mm)
Base Product Number
0402HP
DC Resistance (DCR)
30mOhm
Current Rating (Amps)
2.3 A
Height - Seated (Max)
0.024" (0.60mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
16GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics/Components |
| Type | Drum Core, Wirewound |
| Series | 0402HP |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 1 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.045" L x 0.028" W (1.15mm x 0.70mm) |
| Base Product Number | 0402HP |
| DC Resistance (DCR) | 30mOhm |
| Current Rating (Amps) | 2.3 A |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 16GHz |
| Inductance Frequency - Test | 250 MHz |
