Step1: Product

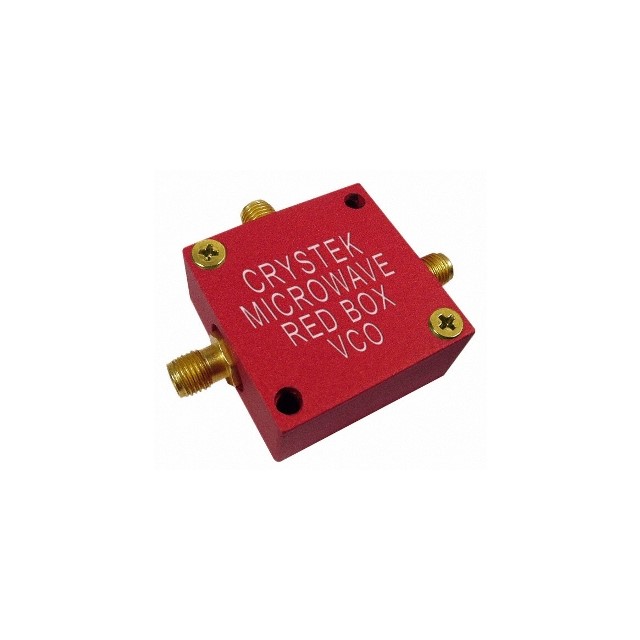

Crystek Corporation CRBV55CXT-5700-5900
Image shown is a representation only
Manufacturer
Manufacturer No
CRBV55CXT-5700-5900
Package
Module Adapter, SMA F (3)
Packaging
Tray
Description
VCO 5800MHZ 0-5V 31.75X14.99MM
Detailed Description
5.8GHz Center Frequency 0 V ~ 5 V Voltage Controlled Oscillator 1 ±3 dBm -30 2nd Harmonic Typ (dBc)
DataSheet
Height
0.590" (14.99mm)
Series
CRBV55, RedBox
Icc Max
35mA
Packaging
Tray
Part Status
Active
Power (dBm)
1 ±3
Manufacturer
Crystek Corporation
Package / Case
Module Adapter, SMA F (3)
Frequency Range
5.7 ~ 5.9GHz
Pushing (MHz/V)
1.5
Size / Dimension
1.250" L x 1.250" W (31.75mm x 31.75mm)
Voltage - Supply
5V
Frequency - Center
5.8GHz
Tuning Voltage (VDC)
0 V ~ 5 V
Operating Temperature
-40°C ~ 85°C
2nd Harmonic, Typ (dBc)
-30
Phase Noise Typ (dBc/Hz)
-100
| Attribute | Value |
|---|---|
| Height | 0.590" (14.99mm) |
| Series | CRBV55, RedBox |
| Icc Max | 35mA |
| Packaging | Tray |
| Part Status | Active |
| Power (dBm) | 1 ±3 |
| Manufacturer | Crystek Corporation |
| Package / Case | Module Adapter, SMA F (3) |
| Frequency Range | 5.7 ~ 5.9GHz |
| Pushing (MHz/V) | 1.5 |
| Size / Dimension | 1.250" L x 1.250" W (31.75mm x 31.75mm) |
| Voltage - Supply | 5V |
| Frequency - Center | 5.8GHz |
| Tuning Voltage (VDC) | 0 V ~ 5 V |
| Operating Temperature | -40°C ~ 85°C |
| 2nd Harmonic, Typ (dBc) | -30 |
| Phase Noise Typ (dBc/Hz) | -100 |
