Step1: Product

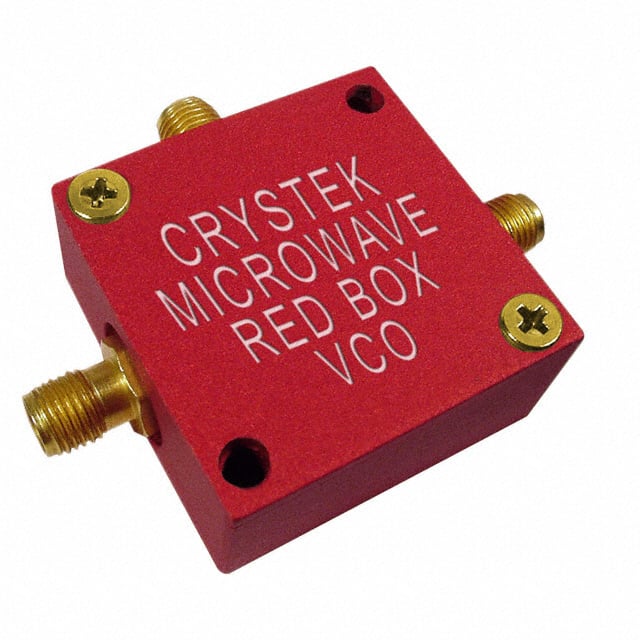

Crystek Corporation CRBV55BE-2320-2750
Image shown is a representation only
Manufacturer
Manufacturer No
CRBV55BE-2320-2750
Package
Module Adapter, SMA F (3)
Packaging
Tray
Description
VCO 2535MHZ 1-14V 31.75X14.99MM
Detailed Description
2535MHz Center Frequency 1 V ~ 14 V Voltage Controlled Oscillator 5 ±2 dBm -15 2nd Harmonic Typ (dBc)
DataSheet
Height
1.250" (31.75mm)
Series
CRBV55, RedBox
Icc Max
35mA
Packaging
Tray
Part Status
Active
Power (dBm)
5 ±2
Manufacturer
Crystek Corporation
Package / Case
Module Adapter, SMA F (3)
Frequency Range
2320 ~ 2750MHz
Pushing (MHz/V)
2
Size / Dimension
1.250" L x 0.590" W (31.75mm x 14.99mm)
Voltage - Supply
6V
Frequency - Center
2535MHz
Tuning Voltage (VDC)
1 V ~ 14 V
Operating Temperature
-40°C ~ 85°C
2nd Harmonic, Typ (dBc)
-15
Phase Noise Typ (dBc/Hz)
-96
| Attribute | Value |
|---|---|
| Height | 1.250" (31.75mm) |
| Series | CRBV55, RedBox |
| Icc Max | 35mA |
| Packaging | Tray |
| Part Status | Active |
| Power (dBm) | 5 ±2 |
| Manufacturer | Crystek Corporation |
| Package / Case | Module Adapter, SMA F (3) |
| Frequency Range | 2320 ~ 2750MHz |
| Pushing (MHz/V) | 2 |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Voltage - Supply | 6V |
| Frequency - Center | 2535MHz |
| Tuning Voltage (VDC) | 1 V ~ 14 V |
| Operating Temperature | -40°C ~ 85°C |
| 2nd Harmonic, Typ (dBc) | -15 |
| Phase Noise Typ (dBc/Hz) | -96 |
