Step1: Product

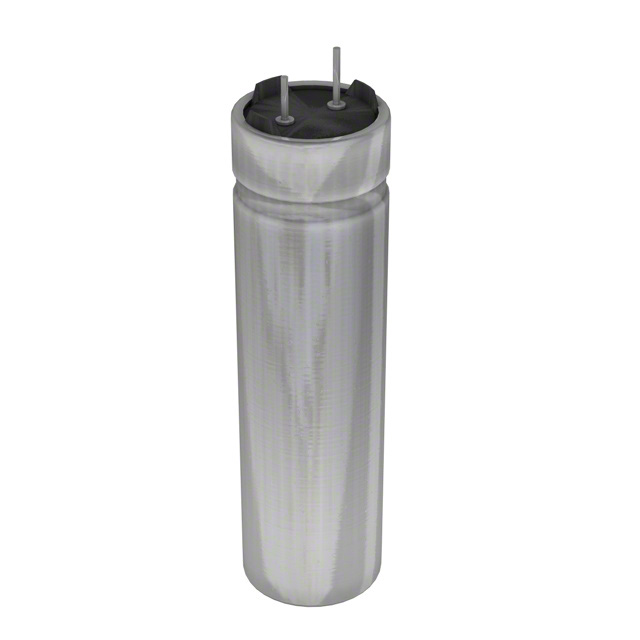

Cornell Dubilier Knowles VPR103U016N3L
Image shown is a representation only
Manufacturer
Manufacturer No
VPR103U016N3L
Package
Radial, Can
Packaging
Bulk
Description
CAP ALUM 10000UF 16V RADIAL TH
Detailed Description
10000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 12mOhm @ 10kHz 2000 Hrs @ 105°C
DataSheet
Mfr
Cornell Dubilier Knowles
Series
VPR
Packaging
Bulk
Tolerance
-10%, +75%
Capacitance
10000 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
0.402" (10.20mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can
Voltage - Rated
16 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
1.000" Dia (25.40mm)
Height - Seated (Max)
3.626" (92.10mm)
Operating Temperature
-55°C ~ 105°C
Ripple Current @ High Frequency
8.033 A @ 10 kHz
ESR (Equivalent Series Resistance)
12mOhm @ 10kHz
| Attribute | Value |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | VPR |
| Packaging | Bulk |
| Tolerance | -10%, +75% |
| Capacitance | 10000 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.402" (10.20mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 3.626" (92.10mm) |
| Operating Temperature | -55°C ~ 105°C |
| Ripple Current @ High Frequency | 8.033 A @ 10 kHz |
| ESR (Equivalent Series Resistance) | 12mOhm @ 10kHz |
