Cornell Dubilier Knowles CGS253U075X4C3PL

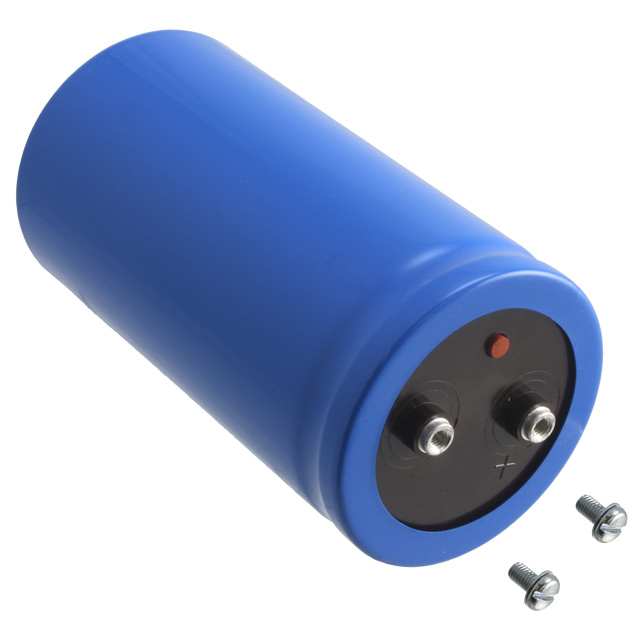

Image shown is a representation only
Manufacturer
Manufacturer No
CGS253U075X4C3PL
Package
Radial, Can - Screw Terminals
Packaging
Bulk
Description
CAP ALUM 25000UF 75V SCREW CHAS
Detailed Description
25000 µF 75 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 39mOhm @ 120Hz 2000 Hrs @ 85°C
Mfr
Cornell Dubilier Knowles
Series
CGS
Packaging
Bulk
Tolerance
-10%, +75%
Capacitance
25000 µF
Part Status
Active
Applications
General Purpose
Polarization
Polar
Mounting Type
Chassis Mount
Package / Case
Radial, Can - Screw Terminals
Voltage - Rated
75 V
Lifetime @ Temp.
2000 Hrs @ 85°C
Size / Dimension
3.000" Dia (76.20mm)
Height - Seated (Max)
4.125" (104.78mm)
Operating Temperature
-40°C ~ 85°C
Ripple Current @ Low Frequency
9 A @ 120 Hz
Ripple Current @ High Frequency
11.7 A @ 10 kHz
ESR (Equivalent Series Resistance)
39mOhm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | CGS |
| Packaging | Bulk |
| Tolerance | -10%, +75% |
| Capacitance | 25000 µF |
| Part Status | Active |
| Applications | General Purpose |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 75 V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Operating Temperature | -40°C ~ 85°C |
| Ripple Current @ Low Frequency | 9 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.7 A @ 10 kHz |
| ESR (Equivalent Series Resistance) | 39mOhm @ 120Hz |
