Step1: Product
Cornell Dubilier Knowles MLS112M075EK1D

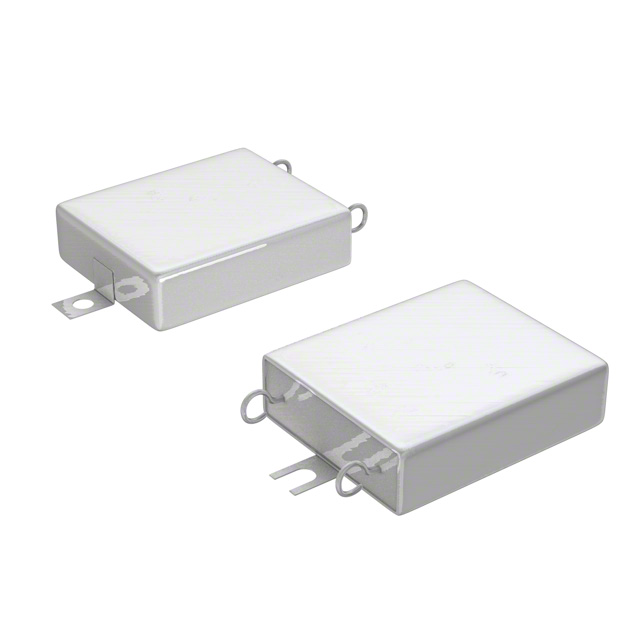

Image shown is a representation only
Manufacturer
Manufacturer No
MLS112M075EK1D
Package
FlatPack, Tabbed
Packaging
Bulk
Description
CAP ALUM 1100UF 20% 75V FLATPACK
Detailed Description
1100 µF 75 V Aluminum Electrolytic Capacitors FlatPack, Tabbed 112mOhm @ 120Hz 10000 Hrs @ 85°C
DataSheet
Mfr
Cornell Dubilier Knowles
Series
MLS
Packaging
Bulk
Tolerance
±20%
Capacitance
1100 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
1.000" (25.40mm)
Polarization
Polar
Mounting Type
Chassis Mount
Package / Case
FlatPack, Tabbed
Voltage - Rated
75 V
Lifetime @ Temp.
10000 Hrs @ 85°C
Size / Dimension
1.500" L x 1.750" W (38.10mm x 44.45mm)
Height - Seated (Max)
0.500" (12.70mm)
Operating Temperature
-55°C ~ 125°C
Ripple Current @ Low Frequency
9.6 A @ 120 Hz
Ripple Current @ High Frequency
11.5 A @ 20 kHz
ESR (Equivalent Series Resistance)
112mOhm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | MLS |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1100 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.000" (25.40mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
| Voltage - Rated | 75 V |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -55°C ~ 125°C |
| Ripple Current @ Low Frequency | 9.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.5 A @ 20 kHz |
| ESR (Equivalent Series Resistance) | 112mOhm @ 120Hz |
