Step1: Product
Cornell Dubilier Knowles CLS501M250MK1C

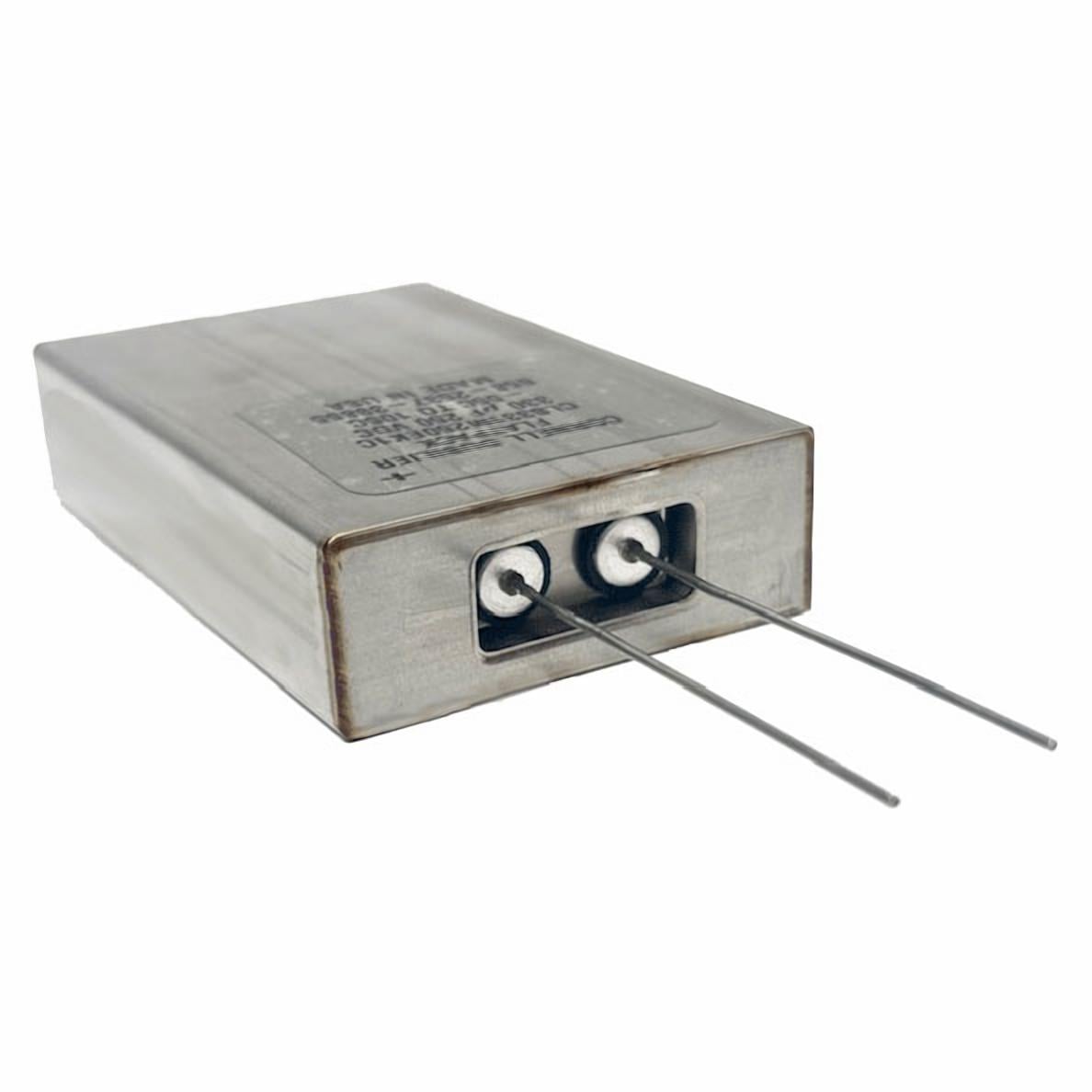

Image shown is a representation only
Manufacturer
Manufacturer No
CLS501M250MK1C
Package
FlatPack
Packaging
Bulk
Description
500F,250VDC,105C FLATPACK
Detailed Description
500 µF 250 V Aluminum Electrolytic Capacitors FlatPack 336mOhm @ 120Hz 10000 Hrs @ 105°C
DataSheet
Mfr
Cornell Dubilier Knowles
Series
CLS
Packaging
Bulk
Tolerance
±20%
Capacitance
500 µF
Part Status
Active
Applications
General Purpose
Polarization
Polar
Mounting Type
Through Hole
Package / Case
FlatPack
Voltage - Rated
250 V
Lifetime @ Temp.
10000 Hrs @ 105°C
Size / Dimension
1.500" L x 1.750" W (38.10mm x 44.45mm)
Height - Seated (Max)
0.600" (15.24mm)
Operating Temperature
-55°C ~ 105°C
Ripple Current @ Low Frequency
1.62 A @ 120 Hz
Ripple Current @ High Frequency
2.67 A @ 20000 Hz
ESR (Equivalent Series Resistance)
336mOhm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | CLS |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 500 µF |
| Part Status | Active |
| Applications | General Purpose |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Voltage - Rated | 250 V |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.600" (15.24mm) |
| Operating Temperature | -55°C ~ 105°C |
| Ripple Current @ Low Frequency | 1.62 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 20000 Hz |
| ESR (Equivalent Series Resistance) | 336mOhm @ 120Hz |
