Step1: Product
Cornell Dubilier Knowles 477UVK010MGE

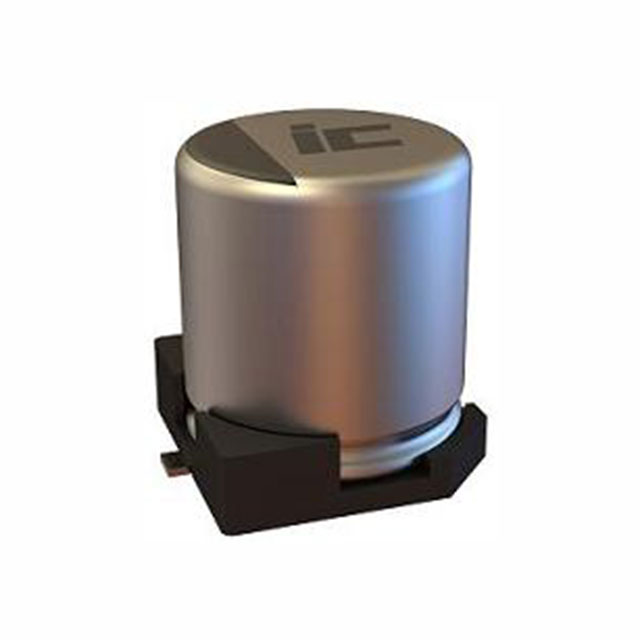

Image shown is a representation only
Manufacturer
Manufacturer No
477UVK010MGE
Package
Radial, Can - SMD
Packaging
Bulk
Description
CAP ALUM 470UF 20% 10V SMD
Detailed Description
470 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.06Ohm @ 120Hz 1500 Hrs @ 125°C
DataSheet
Mfr
Cornell Dubilier Knowles
Series
UVK
Packaging
Bulk
Tolerance
±20%
Capacitance
470 µF
Part Status
Obsolete
Applications
General Purpose
Polarization
Polar
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
10 V
Lifetime @ Temp.
1500 Hrs @ 125°C
Size / Dimension
0.394" Dia (10.00mm)
Height - Seated (Max)
0.413" (10.50mm)
Operating Temperature
-40°C ~ 125°C
Surface Mount Land Size
0.406" L x 0.406" W (10.30mm x 10.30mm)
Ripple Current @ Low Frequency
180 mA @ 120 Hz
Ripple Current @ High Frequency
270 mA @ 10 kHz
ESR (Equivalent Series Resistance)
1.06Ohm @ 120Hz
| Attribute | Value |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | UVK |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 470 µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 10 V |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 10 kHz |
| ESR (Equivalent Series Resistance) | 1.06Ohm @ 120Hz |
