Connor Winfield EH320-TFC-CC-DK1-010.0M

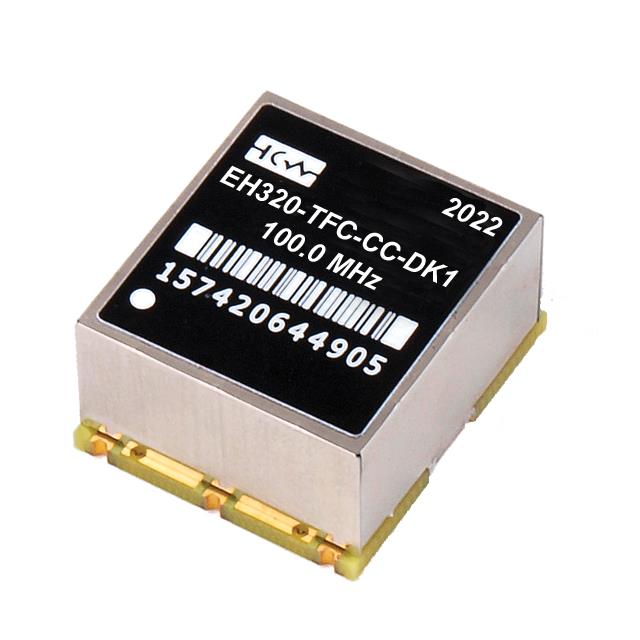

Image shown is a representation only
Manufacturer
Manufacturer No
EH320-TFC-CC-DK1-010.0M
Package
16-SMD Module
Packaging
Strip
Description
XTAL OSC OCXO 10.0000MHZ TFCS
Detailed Description
LVCMOS, Sine Wave OCXO Pin Configurable Oscillator 3.3V 16-SMD Module
DataSheet
Type
OCXO
Height
0.567" (14.40mm)
Output
LVCMOS, Sine Wave
Series
EH320-TFC
Packaging
Strip
Part Status
Active
Manufacturer
Connor Winfield
Base Resonator
Crystal
Package / Case
16-SMD Module
Size / Dimension
1.000" L x 0.866" W (25.40mm x 22.00mm)
Voltage - Supply
3.3V
Frequency Stability
±5ppb
Frequency - Output 1
10MHz
Frequency - Output 2
10MHz
Frequency - Output 3
10MHz
Frequency - Output 4
5MHz
Operating Temperature
0°C ~ 70°C
| Attribute | Value |
|---|---|
| Type | OCXO |
| Height | 0.567" (14.40mm) |
| Output | LVCMOS, Sine Wave |
| Series | EH320-TFC |
| Packaging | Strip |
| Part Status | Active |
| Manufacturer | Connor Winfield |
| Base Resonator | Crystal |
| Package / Case | 16-SMD Module |
| Size / Dimension | 1.000" L x 0.866" W (25.40mm x 22.00mm) |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±5ppb |
| Frequency - Output 1 | 10MHz |
| Frequency - Output 2 | 10MHz |
| Frequency - Output 3 | 10MHz |
| Frequency - Output 4 | 5MHz |
| Operating Temperature | 0°C ~ 70°C |
