Step1: Product

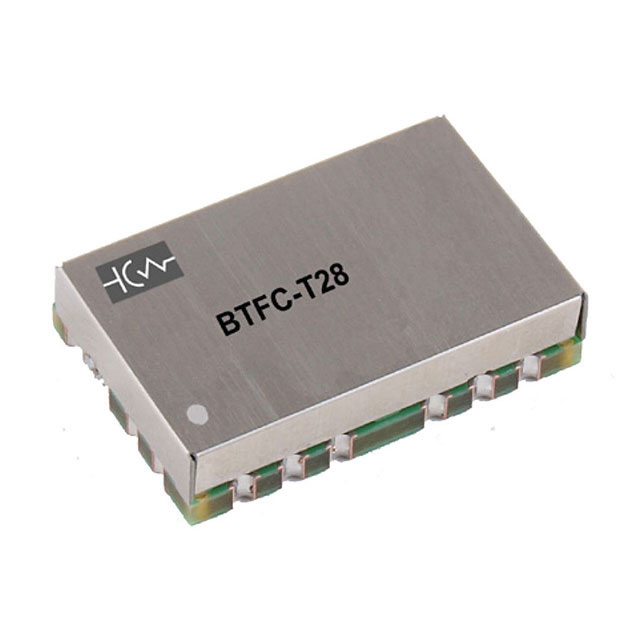

Connor Winfield BTFC-T28-523SC-010.0M-010.0M
Image shown is a representation only
Manufacturer
Manufacturer No
BTFC-T28-523SC-010.0M-010.0M
Package
16-SMD Module
Packaging
Strip
Description
XTAL OSC TCXO 10.0MHZ DUAL OUT S
Detailed Description
CMOS, Sine Wave TCXO Pin Configurable Oscillator 3.3V 16-SMD Module
Datasheet
Type
TCXO
Height
0.220" (5.59mm)
Output
CMOS, Sine Wave
Series
BTFC-T28
Packaging
Strip
Manufacturer
Connor Winfield
Base Resonator
Crystal
Package / Case
16-SMD Module
Size / Dimension
0.825" L x 0.545" W (20.95mm x 13.84mm)
Voltage - Supply
3.3V
Frequency Stability
±280ppb
Frequency - Output 1
100MHz
Frequency - Output 2
10MHz
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
270mA
| Attribute | Value |
|---|---|
| Type | TCXO |
| Height | 0.220" (5.59mm) |
| Output | CMOS, Sine Wave |
| Series | BTFC-T28 |
| Packaging | Strip |
| Manufacturer | Connor Winfield |
| Base Resonator | Crystal |
| Package / Case | 16-SMD Module |
| Size / Dimension | 0.825" L x 0.545" W (20.95mm x 13.84mm) |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Frequency - Output 1 | 100MHz |
| Frequency - Output 2 | 10MHz |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 270mA |
