Step1: Product
CNC Tech 243-32-1-06

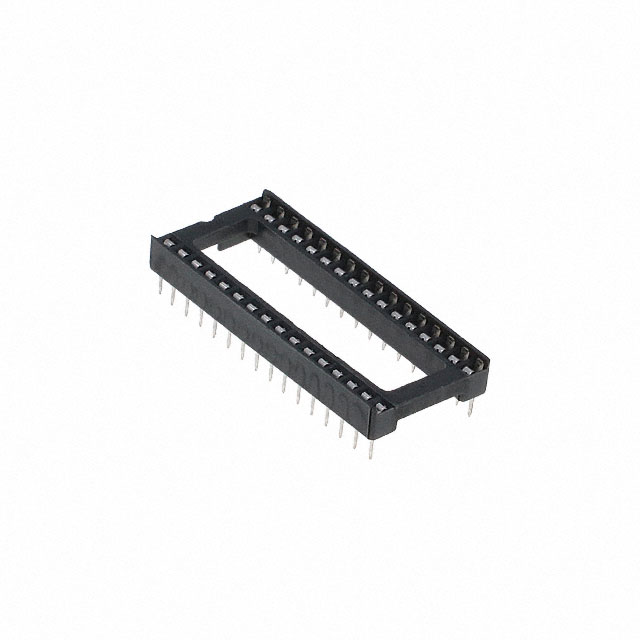

Image shown is a representation only
Manufacturer
Manufacturer No
243-32-1-06
Packaging
Tube
Description
CONN IC DIP SOCKET 32POS TIN
Detailed Description
32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
DataSheet
Type
DIP, 0.6" (15.24mm) Row Spacing
Features
Open Frame
Packaging
Tube
Part Status
Active
Termination
Solder
Manufacturer
CNC Tech
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Resistance
20mOhm
Base Product Number
243
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Termination Post Length
0.124" (3.15mm)
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Number of Positions or Pins (Grid)
32 (2 x 16)
| Attribute | Value |
|---|---|
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | CNC Tech |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Resistance | 20mOhm |
| Base Product Number | 243 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Termination Post Length | 0.124" (3.15mm) |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Number of Positions or Pins (Grid) | 32 (2 x 16) |
