Step1: Product
CNC Tech 211-1-14-003

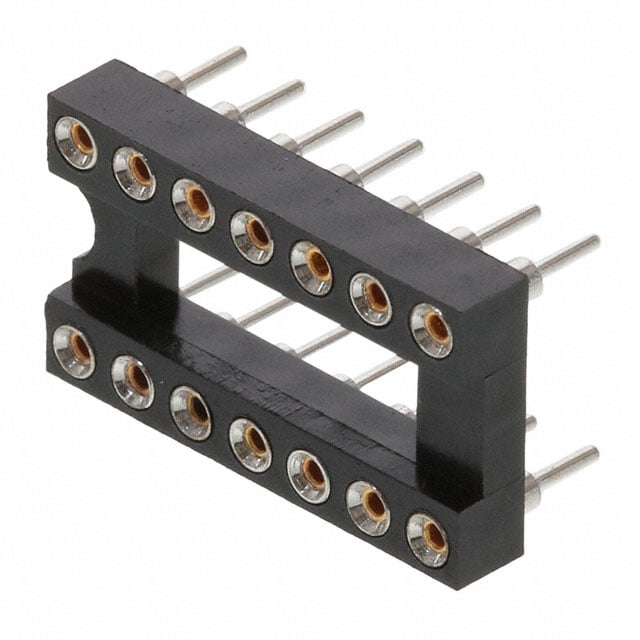

Image shown is a representation only
Manufacturer
Manufacturer No
211-1-14-003
Packaging
Tube
Description
CONN IC DIP SOCKET 14POS GOLD
Detailed Description
14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Datasheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Features
Open Frame
Packaging
Tube
Termination
Solder
Manufacturer
CNC Tech
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polybutylene Terephthalate (PBT)
Contact Resistance
4mOhm
Base Product Number
211-1
Contact Finish - Post
Tin
Current Rating (Amps)
3 A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Contact Material - Post
Brass
Termination Post Length
0.110" (2.78mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Number of Positions or Pins (Grid)
14 (2 x 7)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Features | Open Frame |
| Packaging | Tube |
| Termination | Solder |
| Manufacturer | CNC Tech |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Contact Resistance | 4mOhm |
| Base Product Number | 211-1 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Brass |
| Termination Post Length | 0.110" (2.78mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
