Step1: Product
CML Micro MMA-053223-M4

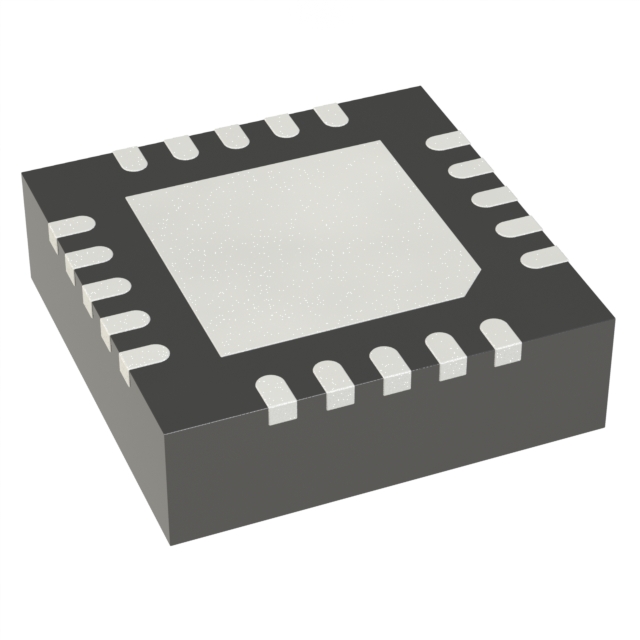

Image shown is a representation only
Manufacturer
Manufacturer No
MMA-053223-M4
Package
20-TFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC AMP CDMA 500MHZ-3.2GHZ 20QFN
Detailed Description
RF Amplifier IC CDMA, CDMA2000, EDGE, GSM, TDMA, TD-SCDMA, UMTS, W-CDMA 500MHz ~ 3.2GHz 20-QFN (4x4)
DataSheet
Gain
12dB
P1dB
23dBm
RF Type
CDMA, CDMA2000, EDGE, GSM, TDMA, TD-SCDMA, UMTS, W-CDMA
Frequency
500MHz ~ 3.2GHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Manufacturer
CML Micro
Noise Figure
3.5dB
Mounting Type
Surface Mount
Package / Case
20-TFQFN Exposed Pad
Test Frequency
500MHz ~ 3.2GHz
Current - Supply
150mA
Voltage - Supply
6V
Supplier Device Package
20-QFN (4x4)
| Attribute | Value |
|---|---|
| Gain | 12dB |
| P1dB | 23dBm |
| RF Type | CDMA, CDMA2000, EDGE, GSM, TDMA, TD-SCDMA, UMTS, W-CDMA |
| Frequency | 500MHz ~ 3.2GHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Manufacturer | CML Micro |
| Noise Figure | 3.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 20-TFQFN Exposed Pad |
| Test Frequency | 500MHz ~ 3.2GHz |
| Current - Supply | 150mA |
| Voltage - Supply | 6V |
| Supplier Device Package | 20-QFN (4x4) |
