Step1: Product
Cincon Electronics Co. LTD CQB75-300S15

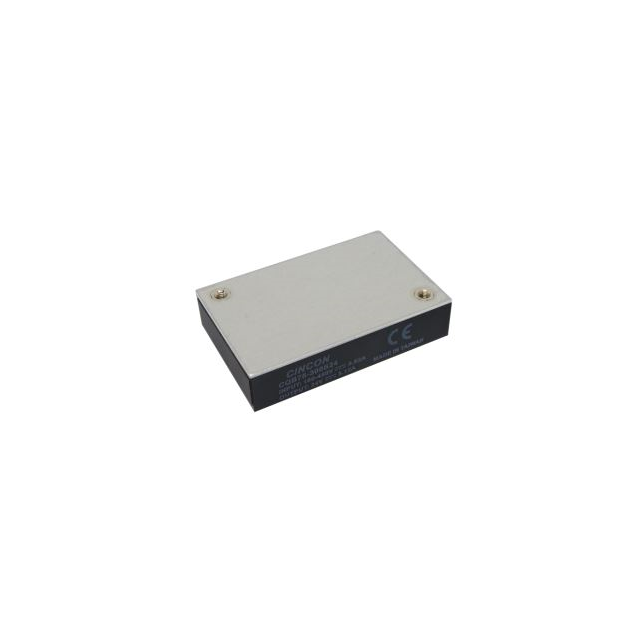

Image shown is a representation only
Manufacturer
Manufacturer No
CQB75-300S15
Package
Quarter Brick
Packaging
Box
Description
DCDC CONVERTER
Detailed Description
Isolated Module DC DC Converter 1 Output 15V 5A 180V - 450V Input
DataSheet
Mfr
Cincon Electronics Co. LTD
Type
Isolated Module
Series
CQB75-300S (75W)
Features
Remote On/Off, Remote Sense
Packaging
Box
Efficiency
90%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
75 W
Package / Case
Quarter Brick
Approval Agency
CE
Standard Number
62368-1
Control Features
Enable, Active High
Size / Dimension
2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Number of Outputs
1
Voltage - Output 1
15V
Base Product Number
CQB75
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 105°C (With Derating)
Voltage - Input (Max)
450V
Voltage - Input (Min)
180V
Current - Output (Max)
5A
Supplier Device Package
Quarter Brick
| Attribute | Value |
|---|---|
| Mfr | Cincon Electronics Co. LTD |
| Type | Isolated Module |
| Series | CQB75-300S (75W) |
| Features | Remote On/Off, Remote Sense |
| Packaging | Box |
| Efficiency | 90% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 75 W |
| Package / Case | Quarter Brick |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Control Features | Enable, Active High |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Base Product Number | CQB75 |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Voltage - Input (Max) | 450V |
| Voltage - Input (Min) | 180V |
| Current - Output (Max) | 5A |
| Supplier Device Package | Quarter Brick |
