Step1: Product

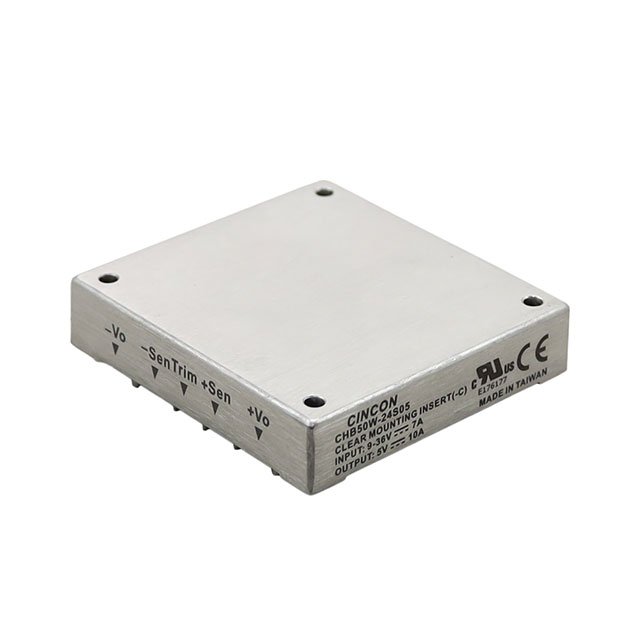

Cincon Electronics Co. LTD CHB50W-24S05-C
Image shown is a representation only
Manufacturer
Manufacturer No
CHB50W-24S05-C
Package
Half Brick
Packaging
Box
Description
DC DC CONVERTER 5V 50W
Detailed Description
Isolated Module DC DC Converter 1 Output 5V 10A 9V - 36V Input
DataSheet
Mfr
Cincon Electronics Co. LTD
Type
Isolated Module
Series
CHB50W (50W)
Features
Remote On/Off
Packaging
Box
Efficiency
81%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
50 W
Package / Case
Half Brick
Approval Agency
CE, cURus
Standard Number
60950-1
Control Features
Enable, Active High
Size / Dimension
2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Number of Outputs
1
Voltage - Output 1
5V
Base Product Number
CHB50W
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 100°C
Voltage - Input (Max)
36V
Voltage - Input (Min)
9V
Current - Output (Max)
10A
Supplier Device Package
Half Brick
| Attribute | Value |
|---|---|
| Mfr | Cincon Electronics Co. LTD |
| Type | Isolated Module |
| Series | CHB50W (50W) |
| Features | Remote On/Off |
| Packaging | Box |
| Efficiency | 81% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 50 W |
| Package / Case | Half Brick |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Control Features | Enable, Active High |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Base Product Number | CHB50W |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 10A |
| Supplier Device Package | Half Brick |
