Step1: Product
Cinch Connectivity Solutions DCCM100SCBRPN-X2S

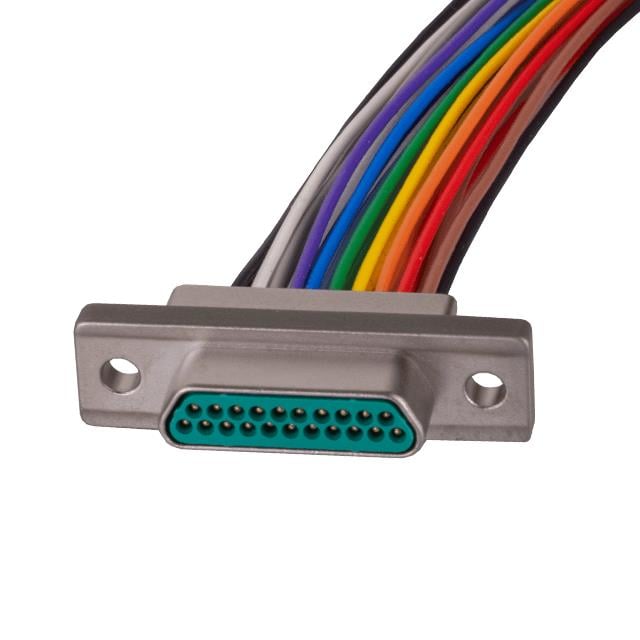

Image shown is a representation only
Manufacturer
Manufacturer No
DCCM100SCBRPN-X2S
Packaging
Box
Description
CONN MICRO-D RCPT 100P R/A SLDR
Detailed Description
100 Position D-Type, Micro-D Receptacle, Female Sockets Connector
DataSheet
Mfr
Cinch Connectivity Solutions
Series
Dura-Con™
Packaging
Box
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock
Number of Rows
4
Connector Style
D-Type, Micro-D
Contact Material
Copper Alloy
Primary Material
Metal
Dielectric Material
Diallyl Phthalate (DAP), Glass Filled
Number of Positions
100
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 135°C
Shell Material, Finish
Aluminum Alloy, Nickel Plated, Electroless
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
0.050 Pitch x 0.043 Row to Row
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions |
| Series | Dura-Con™ |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock |
| Number of Rows | 4 |
| Connector Style | D-Type, Micro-D |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Number of Positions | 100 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 135°C |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row |
