Step1: Product

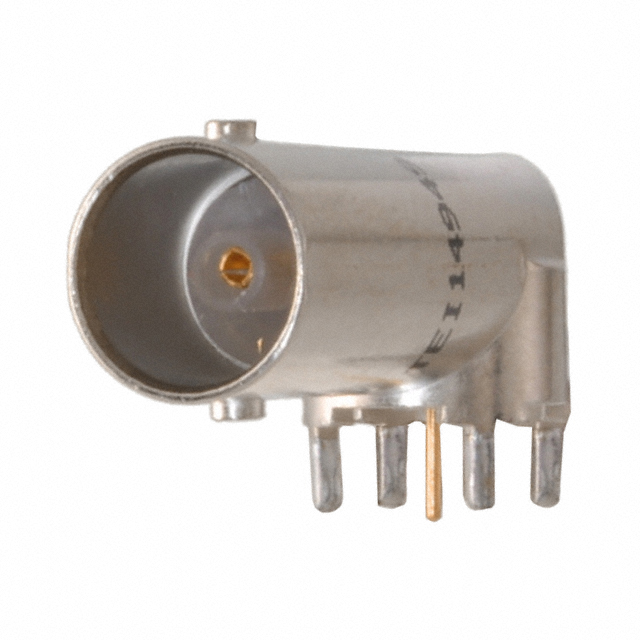

Cinch Connectivity Solutions Trompeter UCBJR220
Image shown is a representation only
Manufacturer
Manufacturer No
UCBJR220
Packaging
Bulk
Description
CONN BNC JACK R/A 75 OHM PCB
Detailed Description
BNC Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
DataSheet
Mfr
Cinch Connectivity Solutions Trompeter
Series
220
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Obsolete
Body Material
Brass
Housing Color
Silver
Mounting Type
Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
UCBJ
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Trompeter |
| Series | 220 |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Obsolete |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | UCBJ |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
