Step1: Product

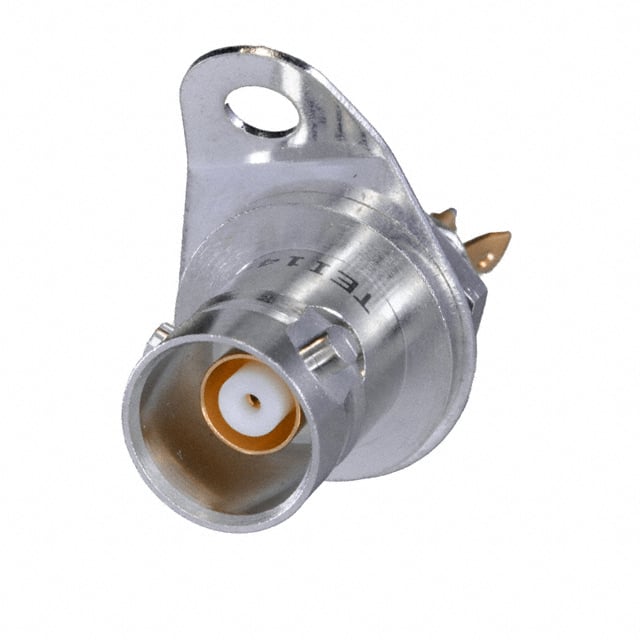

Cinch Connectivity Solutions Trompeter BJ77
Image shown is a representation only
Manufacturer
Manufacturer No
BJ77
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
CONN TRB JACK STR SOLDER
Detailed Description
TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder Cup
Datasheet
Mfr
Cinch Connectivity Solutions Trompeter
Series
70
Features
Extended Insulation, Three Lug
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket (Concentric)
Fastening Type
Bayonet Lock
Voltage Rating
400 V
Connector Style
TRB, Twinaxial/Triaxial
Frequency - Max
500 MHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Shield Termination
Solder Tag
Contact Termination
Solder Cup
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Trompeter |
| Series | 70 |
| Features | Extended Insulation, Three Lug |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket (Concentric) |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 400 V |
| Connector Style | TRB, Twinaxial/Triaxial |
| Frequency - Max | 500 MHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Shield Termination | Solder Tag |
| Contact Termination | Solder Cup |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
