Step1: Product

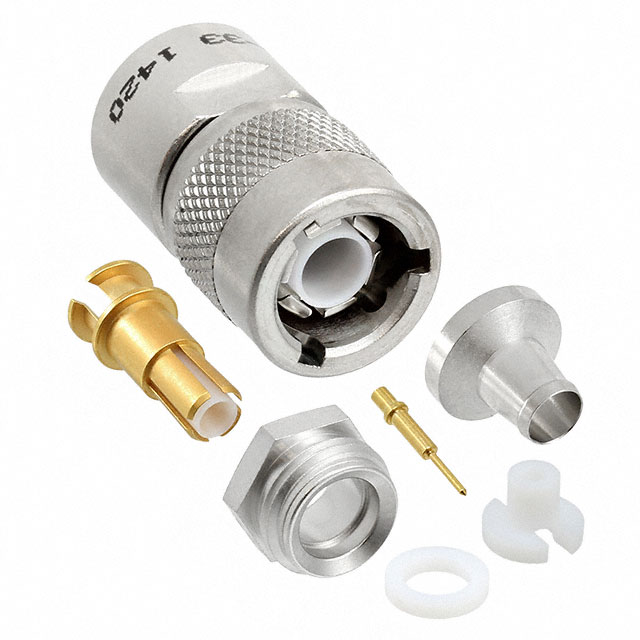

Cinch Connectivity Solutions Trompeter PL155-33
Image shown is a representation only
Manufacturer
Manufacturer No
PL155-33
Packaging
Bulk
Description
CONN TRS PLUG STR SOLDER
Detailed Description
TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
DataSheet
Mfr
Cinch Connectivity Solutions Trompeter
Series
150
Features
Three Lug
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Cable Group
TRC-75-1
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin (Concentric)
Fastening Type
Bayonet Lock
Voltage Rating
400 V
Connector Style
TRS, Twinaxial/Triaxial
Frequency - Max
500 MHz
Number of Ports
1
Shield Termination
Wrench Clamp
Base Product Number
PL155
Contact Termination
Solder
Operating Temperature
-65°C ~ 200°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Trompeter |
| Series | 150 |
| Features | Three Lug |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | TRC-75-1 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin (Concentric) |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 400 V |
| Connector Style | TRS, Twinaxial/Triaxial |
| Frequency - Max | 500 MHz |
| Number of Ports | 1 |
| Shield Termination | Wrench Clamp |
| Base Product Number | PL155 |
| Contact Termination | Solder |
| Operating Temperature | -65°C ~ 200°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
