Step1: Product

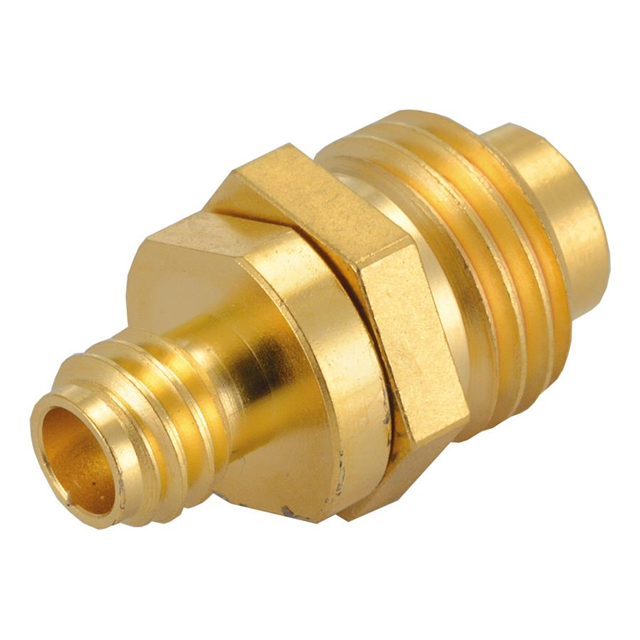

Cinch Connectivity Solutions Johnson 149-0701-001
Image shown is a representation only
Manufacturer
Manufacturer No
149-0701-001
Packaging
Bag
Description
1.0MM FEMALE SPARKPLUG CONNECTOR
Detailed Description
1.0mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Body Material
Beryllium Copper
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.7dB
Voltage Rating
150 V
Connector Style
1.0mm
Frequency - Max
110 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Base Product Number
149-0701
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Beryllium Copper |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.7dB |
| Voltage Rating | 150 V |
| Connector Style | 1.0mm |
| Frequency - Max | 110 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Base Product Number | 149-0701 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
