Step1: Product

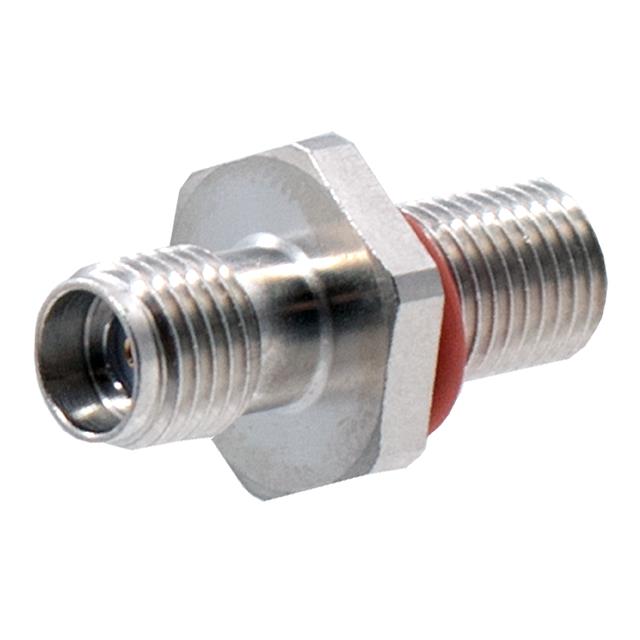

Cinch Connectivity Solutions Johnson 142-1701-411
Image shown is a representation only
Manufacturer
Manufacturer No
142-1701-411
Packaging
Bag
Description
SMA BULKHEAD JACK, TAB CONTACT,
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Tab
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Impedance
50 Ohms
Packaging
Bag
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
Waterproof
Shield Termination
Solder
Contact Termination
Solder Tab
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | Waterproof |
| Shield Termination | Solder |
| Contact Termination | Solder Tab |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
