Step1: Product

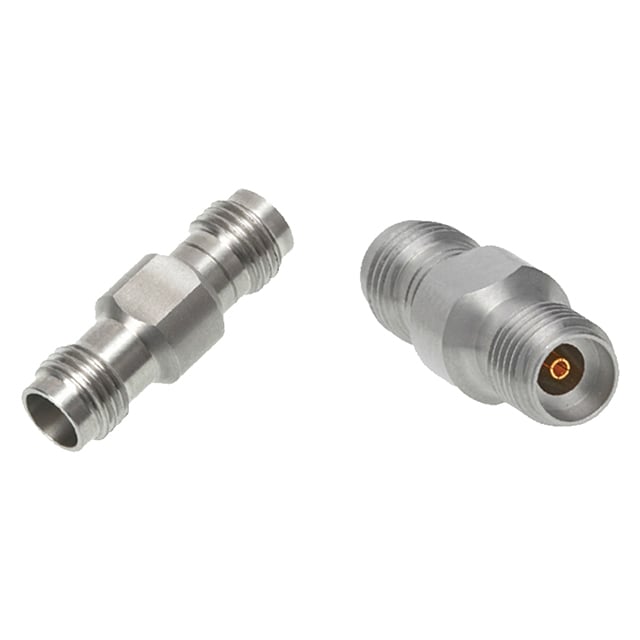

Cinch Connectivity Solutions Johnson 134-1000-020
Image shown is a representation only
Manufacturer
Manufacturer No
134-1000-020
Packaging
Bag
Description
COAX ADAPT 1.85MM TO 2.92MM
Detailed Description
Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Style
Straight
Series
134
Impedance
50 Ohms
Packaging
Bag
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Stainless Steel
Center Gender
Female to Female
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
1.85mm to 2.92mm
Fastening Type
Threaded, Threaded
Insertion Loss
0.60dB
Conversion Type
Between Series
Frequency - Max
46.5 GHz
Base Product Number
134-1000
Dielectric Material
Polyetherimide (PEI)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
2.92mm (OS-2.9) Jack, Female Socket
Convert From (Adapter End)
1.85mm Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Style | Straight |
| Series | 134 |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Gender | Female to Female |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | 1.85mm to 2.92mm |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | 0.60dB |
| Conversion Type | Between Series |
| Frequency - Max | 46.5 GHz |
| Base Product Number | 134-1000 |
| Dielectric Material | Polyetherimide (PEI) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Jack, Female Socket |
| Convert From (Adapter End) | 1.85mm Jack, Female Socket |
