Step1: Product

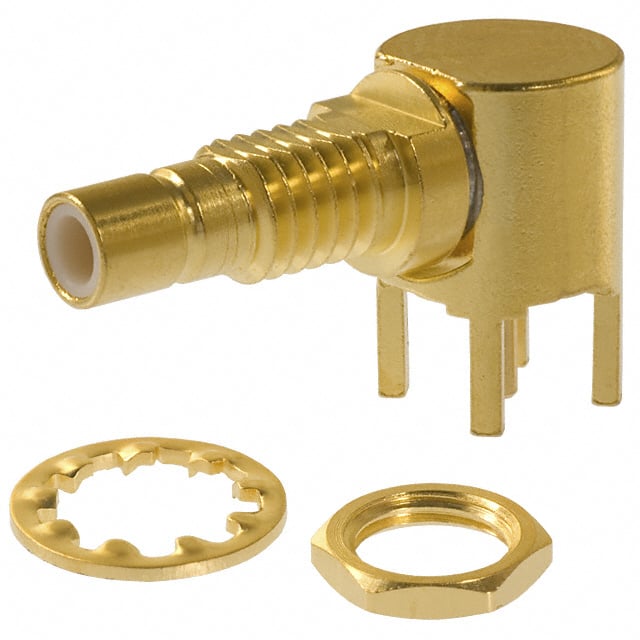

Cinch Connectivity Solutions Johnson 131-3701-341
Image shown is a representation only
Manufacturer
Manufacturer No
131-3701-341
Packaging
Bulk
Description
CONN SMB JACK R/A 50 OHM PCB
Detailed Description
SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMB
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
131-3701
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMB |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | 131-3701 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
